04 / 17
Case file

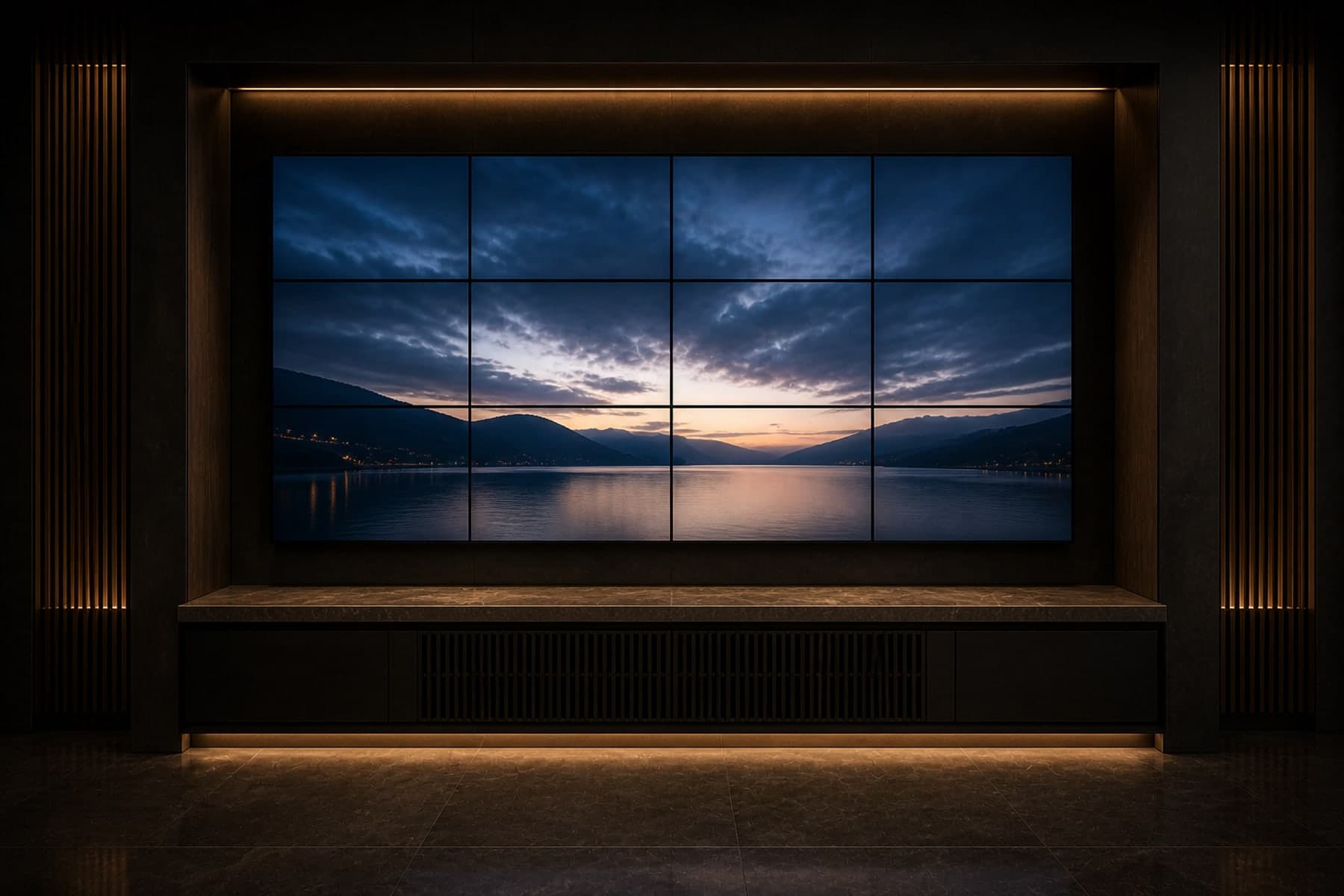

Direct-view LED, fine-pitch LCD and rear-projection video walls for command centres, lobbies, broadcast studios, control rooms and event venues.
| Pixel pitch | Minimum comfortable viewing distance | Typical use |
|---|---|---|
| Finer pitch (e.g. P1.5) | Closer | Close-viewed lobby and control-room walls |
| Coarser pitch (e.g. P2.5) | Further | Larger rooms with greater sightlines |
Rule of thumb: minimum viewing distance in metres roughly equals pixel pitch in millimetres. Actual sightlines are measured before recommending.
/ The discipline, in detail
How we approach video walls.
A video wall is not a row of screens — it is a single, calibrated canvas. We specify pixel pitch to the closest viewer, brightness to the ambient light, and colour gamut to the content. Mullions are eliminated where the design requires it; bezels are accepted where they earn their place.
We commission with calibration probes per panel, a documented uniformity report, and a controller capable of source-routing without latency. Servicing access — tools-free panel removal, redundant power, hot-swap controllers — is designed in.
On record
Every video walls engagement is documented end-to-end — design, programming, commissioning, calibration — and handed over with the files our successors would need if we were never to return.
/ AV-over-IP
Any source, any canvas
Multi-source video-wall orchestration over the network — encoders, a managed switch fabric and synchronised decode at the wall.
Diagrammatic view — a system planning illustration for design discussion, not a project drawing or live interface.
/ Where we deploy this
Active across 4 sectors.
Video Walls is rarely a standalone brief — it sits inside a wider sector practice with its own codes, expectations and operating rhythm.
/ Sister services
The rest of av.
A serious brief usually crosses two or three of these. Read across the discipline — we deliver them as one contract.
- 01
Home Theatre
Reference cinema, in your living room.
Custom-engineered private cinemas — projector, processor, screen, seating and acoustics designed to a single sweet-spot, certified to THX or Dolby Atmos.0 - 02
Multi-Room Audio
One song. Every room. Or six different ones.
Whole-home audio on Yamaha, Sonance and BluOS — invisible in-ceiling speakers, hidden subs, room-corrected and zone-routed.1 - 03
Acoustic Solutions
Rooms that sound the way they look.
Acoustic design and treatment for cinemas, auditoriums, recording studios, places of worship and conference halls — engineered absorbers, diffusers, bass traps and ceiling clouds.2 - 05
Smart Classrooms
Every student. Every word. Every time.
Interactive flat-panels, lecture-capture, voice-lift and learning-management integrations — engineered to NCERT, NEP-2020 and university lab specifications.3 - 06
LED Panels & Projectors
The right pixels for the room.
Direct-view LED, OLED, microLED and laser projection — selected to the room's lux, throw, sightline and content.4 - 07
Professional Audio & PA Systems
Intelligible, every seat in the house.
Public address, voice-evacuation and concert-grade audio for auditoriums, places of worship, stadia, transit hubs and event venues.5 - 08
Auditoriums & Boardrooms
Rooms that begin on time.
Turnkey auditorium, boardroom, training-room and conference-room AV — display, audio, control, video-conferencing and lighting integrated to a single touch.6 - 09
Digital Conferencing & Voting Systems
Sittings, voting, interpretation — one system, every seat.
Parliamentary-grade digital conferencing for legislative chambers, council halls and corporate boardrooms — mic management, electronic voting, 8-channel interpretation, camera control and chamber recording, integrated through Bosch DCN, Dicentis and Integrus.7 - 10
Recording Studios & Nightlife
Rooms tuned to the recording.
Recording studio design, post-production suites, broadcast booths and nightlife audio — acoustic isolation, monitoring, console integration and DJ infrastructure.8 - 11
Stage Lighting
Light that performs.
Theatre, concert, event, nightclub and place-of-worship stage lighting — moving heads, washes, profiles, pixel-mapped LED, effect lighting and MADRIX or ProtoPixel show control on DMX / Art-Net / sACN.9 - 12
Conference Room AV
Single-touch join. Every meeting.
Microsoft Teams Rooms, Zoom Rooms and Cisco Webex-certified meeting rooms, with auto-tracking cameras, ceiling-array microphones and one-touch room controllers.10 - 13
Hospitality Venue AV
From the banquet stage to the last bar stool.
Hospitality venue AV — banquet hall, ballroom and conference AV, restaurant and bar zone audio, and club-grade nightlife systems with JBL Professional, K-array and Kgear, engineered for hotels, resorts and standalone venues.11 - 14
Digital Signage & Wayfinding
The right message, in the right place, on schedule.
Commercial indoor and outdoor display panels, signage video walls, menu boards, wayfinding and queue or information screens — driven by content-management software with scheduling and remote management for retail, hospitality, corporate, transport and institutional spaces.12 - 15
IPTV & Hospitality TV
Live channels, your channel, on every screen in the building.
Head-end reception and IP distribution of live television, in-house channels and content to commercial-grade and hotel TVs — with interactive welcome screens, an electronic programme guide, casting and integration into the property's network and guest-room systems.13 - 16
Queue Management System
Take a token, watch the counter, walk up.
Token and queue management — ticket dispensers, counter and main calling displays, audio call-forward, multi-counter routing and wait-time analytics — for healthcare, banks, government and retail counters.14 - 17
IP Paging & Announcement
Page the right zone, over the network.
IP network paging and announcement — zoned paging over the data network, SIP/telephone and desktop paging, scheduled bells and announcements — integrated with the PA and telephony systems for offices, campuses, industrial and transit sites.15
/ Where this system has been deployed
Video Walls on the ground.
The reference projects below carry a video walls layer engineered as part of an integrated stack. Each case study walks through the engineering challenges that were solved, the standards the work was held to, and the operational outcome on the day-two team.
- Completed · Handover 2018
Cabinet Conference Room, Arunachal Pradesh Secretariat
Government · Cabinet Conferencing · Itanagar, Arunachal Pradesh
- Completed · Completed project
Conference Room, Chief Minister's Residential Complex, Kohima
Government · Executive Conference Room · Kohima, Nagaland
Public project summaries describe systems and outcomes only — BOQ values, quantities, device counts and security layouts are kept off public surfaces.
Request a feasibility review/ Integration with
How video walls talks to the rest.
A serious deployment of this system rarely operates in isolation. The disciplines below most commonly share its cabling pathways, its controller logic, and its cause-and-effect matrix.
Auditoriums & Boardrooms
Rooms that begin on time.
Turnkey auditorium, boardroom, training-room and conference-room AV — display, audio, control, video-conferencing and lighting integrated to a single touch.Professional Audio & PA Systems
Intelligible, every seat in the house.
Public address, voice-evacuation and concert-grade audio for auditoriums, places of worship, stadia, transit hubs and event venues.Stage Lighting
Light that performs.
Theatre, concert, event, nightclub and place-of-worship stage lighting — moving heads, washes, profiles, pixel-mapped LED, effect lighting and MADRIX or ProtoPixel show control on DMX / Art-Net / sACN.
/ Read deeper
The engineering, in long form.
Each article below goes deeper than this service page can — a full walk-through of the engineering decisions, written by the team that delivers this work.
- AV · 11 min
Digital signage architecture: pixel pitch, content orchestration and the part of the brief nobody writes
Pixel pitch against viewing distance, brightness against ambient light, content distribution architecture, signal redundancy and the thermal/load realities that decide whether a signage deployment ages well or fails in eighteen months.
Read article - AV · 9 min
AV-over-IP deployment realities: network discipline is the binding constraint, not the codec choice
AV-over-IP is a network deployment that happens to carry AV. The codec choice, the platform brand and the encoder count are the visible decisions; the multicast routing, the IGMP snooping, the QoS marking, the VLAN segregation and the BFD discipline are the invisible decisions that decide whether the deployment works. Why network discipline outweighs codec choice on real projects.
Read article
Engineering toolkit
Tools to scope this work
Calculators and reference checkers we use ourselves to sense-check the engineering before any drawings change hands.
- AV · LED
LED Wall Size Calculator
Direct-view LED wall sizing across a verified, source-cited model catalogue including Samsung, LG MAGNIT, Sony, Philips, Leyard, Absen, Unilumin, ROE Visual, AOTO, INFiLED, Daktronics, Planar, Nanolumens and more. Cabinet count, native resolution, brightness adequacy, power and weight — with pitch-vs-distance honesty and camera-refresh flags. Sources cited per model.
50 brands · pitch-awareOpen - AV · Projection
Projector Throw Calculator
Engineering-grade throw distance calculator across a verified multi-brand projector catalogue — Sony, JVC, Epson, BenQ, LG, Optoma, ViewSonic, Panasonic, Barco, Christie, Canon, InFocus, Maxell, Casio, EIKI, Philips, Nebula, JMGO, Dangbei, Boxlight, ASUS, Leica, Xiaomi, WEMAX, Ricoh and more. Searchable picker, throw range, lens-shift envelope, viewing distance, pixel density, feasibility flags and a custom-throw fallback. Sources cited per model.
50 brands · sourcedOpen - BMS · Energy
Energy & Efficiency Estimator
Adjust building variables and see indicative energy and CO₂ savings (kWh) for a BMS-driven energy upgrade plus daylight-harvesting LED retrofit. Conservative; defensible in a first conversation.
kWh · CO₂ savedOpen
/ Engineering concepts
Related engineering concepts
Concept
AV-over-IP Distribution
Audio-visual signal distribution over a standard IP network. Reduces matrix-switcher cost, scales to large routing, and integrates cleanly with the building IT layer. Most premium boardrooms, video walls and houses of worship are now AV-over-IP.
Concept
HDBaseT Distribution
Single-cable AV distribution standard. Sends uncompressed video, audio, ethernet, control and PoE up to 100 m on Cat6 — workhorse format for boardrooms, classrooms and most commercial AV.
Concept
Cat6A Structured Cabling
Augmented Category 6 structured cabling — 10 Gbps over the full 100 m channel, rated for 25 years of service. The default for any new commercial or premium-residential cabling layer.
Concept
K-array & KGEAR — Premium Italian Architectural Audio
Premium Italian architectural-audio ecosystem — K-array's slim, discreet loudspeakers and the KGEAR everyday professional line — specified for design-led residences, hospitality and premium interiors across North-East India.
/ Used alongside
Commonly deployed alongside
Service
Auditoriums & Boardrooms
Rooms that begin on time.
Sector
Commercial & Corporate
Workplaces that begin meetings on time.
Sector
Government & Public Safety
Mission-grade integration.
Sector
Retail & Malls
Footfall, loyalty, footprint.
Project
Cabinet Conference Room, Arunachal Pradesh Secretariat
Cabinet Conference Room, Arunachal Pradesh Secretariat — cabinet conference room audio, video and control infrastructure delivered under sub-contract in an Arunachal Pradesh Public Works Department project, integrating Bose, BSS by Harman, LG, WyreStorm, AMX by Harman and Rako. Procurement quantities, private implementation schedules and private handover evidence stay in the project file.
Project
Conference Room, Chief Minister's Residential Complex, Kohima
An executive conference room at the Chief Minister's Residential Complex in Kohima, engineered for cabinet-level meetings and presentations — a distributed JBL speaker system, a boundary-microphone conference table with automatic echo-cancelling mixing, and a Samsung fine-bezel 2×2 video wall, delivered as one coordinated conference-AV scope.
/ Plan it right
Video Walls — getting the brief right.
Common mistakes to avoid
- Choosing pixel pitch on budget instead of the closest viewer's actual distance.
- Ignoring ambient light — a lobby wall facing glazing needs brightness a boardroom specification never anticipated.
- No service-access plan — front-service versus rear-service decides the wall's position and depth before the finishes are designed.
- Forgetting the wall is a system — controller, sources, content workflow and cooling — not just a grid of panels.
- Underestimating structural load and heat — a large DV-LED wall is a structural and HVAC conversation, not only an AV one.
What to share before a quotation
- The wall location, the viewing distances and the mounting surface or structure behind it.
- Ambient light conditions across the day at that position.
- The content plan — sources, resolution, and who operates and updates it.
- Operating hours — continuous signage duty changes the specification.
- Power, cooling and service-access constraints at the position.
/ Frequently asked
Video Walls — what buyers ask first.
What pixel pitch do I need?
Minimum viewing distance in metres roughly equals pixel pitch in millimetres — a P1.5 LED wall is comfortable from 1.5 m, a P2.5 needs 2.5 m. We measure the actual sightlines before recommending.
Direct-view LED or fine-pitch LCD — which should we specify?
Direct-view LED is the right answer for any application where the wall is visible from far enough that the LED's pixel pitch (P0.9, P1.5, P2.5) suits the closest viewer. LCD video walls remain useful where ultra-thin bezels (1mm) and 4K-per-tile resolution at close distance matter — typically command-and-control rooms. Cost crossover is now around the 110-inch mark.
What's the right pixel pitch for a given room?
Rule of thumb: closest-viewer-distance in metres × 0.5 ≈ maximum pixel pitch in mm. A boardroom wall viewed from 3m comfortably needs P1.5 or finer. A lobby wall viewed from 8m can run P3. Outdoor signage is a different calculation again — we model each project.
How do you handle calibration across a multi-tile video wall?
Every panel is calibrated for colour, brightness and gamma at the factory and re-checked on site after installation using a spectroradiometer. The video processor (Userful, Datapath, AMX) handles edge-blending and uniformity correction. Quarterly recalibration during AMC keeps the wall looking like a single canvas as panels age.
What's the lifecycle of a direct-view LED wall?
Indoor LED walls run 80,000–100,000 hours to half-brightness — about 11–14 years at 16 hours/day. Power-supply modules are the typical first replacement at year 5–7. We hold spare LED modules and PSUs for active deployments so a panel failure is recoverable in hours.
Can a video wall display content from multiple sources at once?
Yes — a video processor (Userful, Datapath FX4, AMX N-series) routes any source to any region of the wall, in any layout, with low-latency switching. Most command-centre walls run 4–12 sources tiled simultaneously; lobby walls typically run a single curated channel.
Which LED and video-wall brands does TechnoGuru work with?
On the display side we work with families such as AERO, Samsung, Sony and LG, with BenQ and ViewSonic on the projector and panel side and Novastar processing and control on the LED side. Brand references here are for comparison and application guidance, not a statement of partnership. The final make and model are selected after the viewing distance, site dimensions, content type and mounting and service plan are reviewed.
What does the controller or processor do on a video wall, and how is it chosen?
The processor — for example Novastar on LED, or Userful, Datapath and AMX on tiled displays — handles the input routing, layout, edge-blending and uniformity across the canvas. It is sized to the source count, the resolution across the wall and the switching the room needs, chosen against the actual application rather than a fixed model. Final selection stays subject to the site dimensions, content type and service access.
