09 / 19
Case file

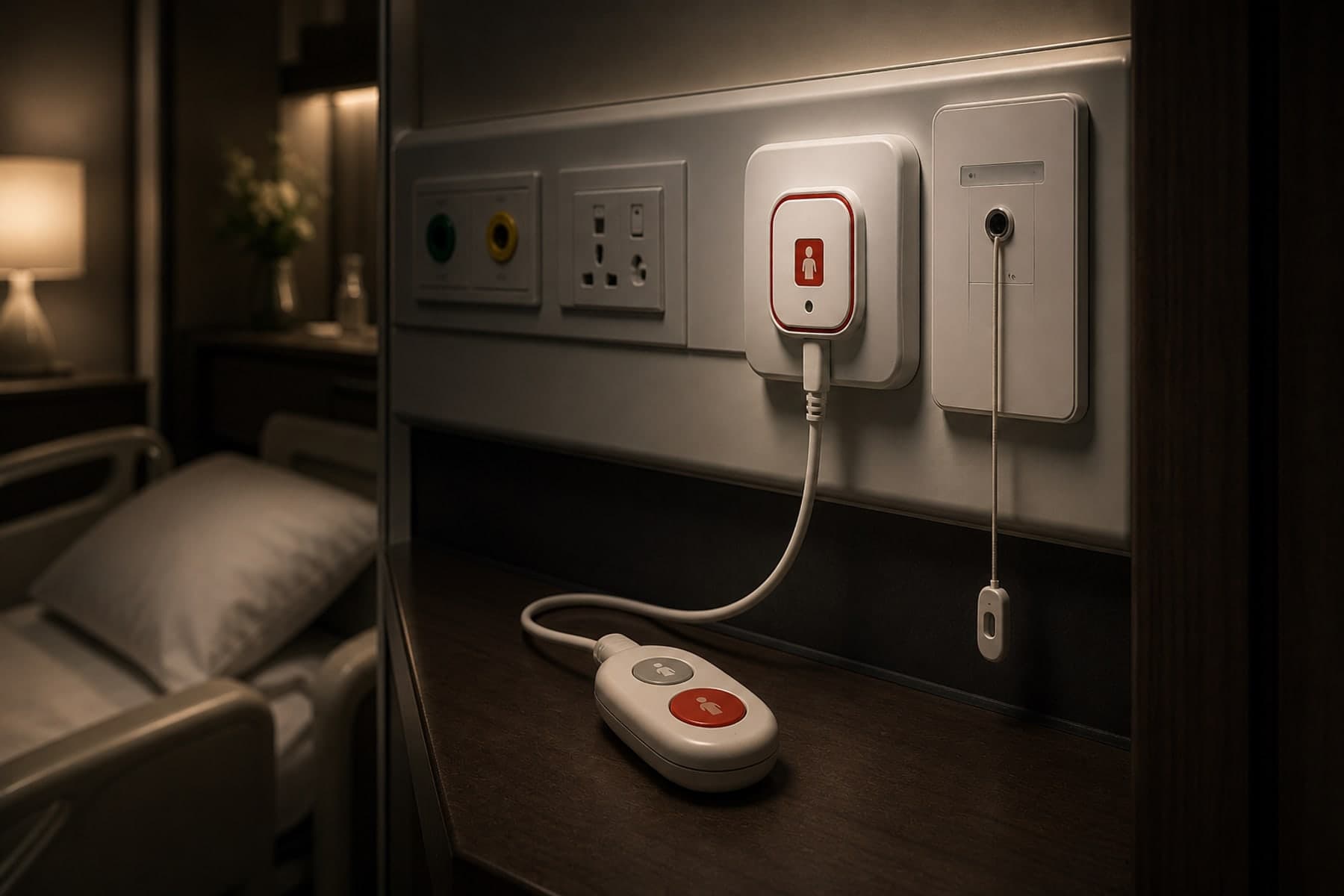

IP-based nurse call systems with bedside, bathroom, code-blue and staff-presence stations, integrated with mobile and PA.
| Aspect | Basic call-point approach | Engineered approach |
|---|---|---|
| Escalation | Call sounds and waits | Escalates to mobile and pager on configurable timers if unanswered |
| Station coverage | Bedside only | Bedside, bathroom, code-blue and staff-presence per the room's clinical use |
| Accountability | No record | Every call, accept, cancel and transfer logged for service-quality reporting |
Educational comparison of design rigour — not a statement about any specific installer.
/ The discipline, in detail
How we approach nurse calling system.
A modern nurse-call system measures itself in response time, not just call origination. Bedside calls escalate to mobile devices on configurable timers. Staff-presence buttons cancel calls only when the nurse is in the room. Code-blue triggers light up at the nursing station, the corridor dome, the duty pager and the cellphone simultaneously. Every event — call, accept, cancel, transfer — is logged for service-quality analytics.
On record
Every nurse calling system engagement is documented end-to-end — design, programming, commissioning, calibration — and handed over with the files our successors would need if we were never to return.
/ Clinical coordination
Bedside to station

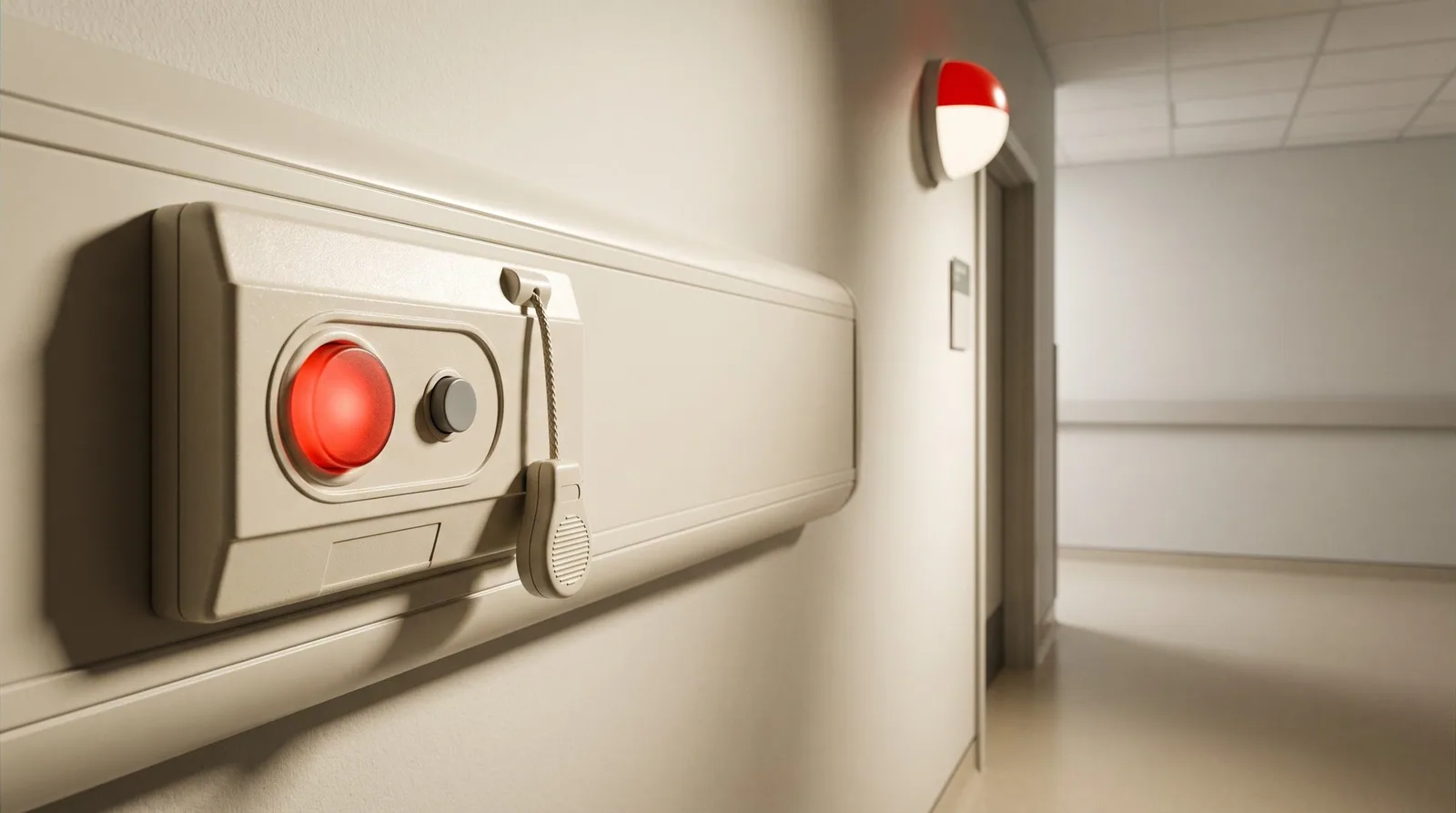

Nurse call inside the wider hospital ELV matrix — how bedside events, corridor lamps, duty stations and reporting coordinate across systems.
Diagrammatic view — a system planning illustration for design discussion, not a project drawing or live interface.
/ Where we deploy this
Active across 1 sector.
Nurse Calling System is rarely a standalone brief — it sits inside a wider sector practice with its own codes, expectations and operating rhythm.
/ Sister services
The rest of elv.
A serious brief usually crosses two or three of these. Read across the discipline — we deliver them as one contract.
- 01
CCTV & Surveillance
Coverage. Storage. Evidence.
IP video surveillance — Hikvision, Dahua, Axis, Bosch — designed to coverage, recording-bandwidth and retention specifications, with VMS and AI-analytics overlays.0 - 02
Access Control
Right person. Right door. Right time.
Card, biometric, mobile-credential and visitor-management — Honeywell, HID, Matrix and Suprema — integrated with CCTV, intrusion and HR systems.1 - 03
Fire Alarm System
Detection that pinpoints. Response that is coordinated.
Addressable and conventional fire detection and alarm — one of the three fire families (fire alarm, fire hydrant, fire extinguishers) — Honeywell, Bosch, Notifier and Siemens panels — integrated with PA, BMS, access control and emergency lighting to readiness per NBC, IS 2189 and NFPA 72, for consultant and AHJ review.2 - 04
Fire Hydrant System
High-volume water, precisely where it's needed.
Wet- and dry-riser hydrant systems — one of the three fire families (fire alarm, fire hydrant, fire extinguishers) — jockey-and-main pump rooms, yard hydrants and four-way fire-brigade inlets, engineered to readiness per NBC, IS 13039 and NFPA 14 for consultant and AHJ review.3 - 05
X-Ray Baggage Scanners
Operator confidence, in seconds.
Dual-energy X-ray baggage and parcel scanners for airports, hotels, government buildings, courts, malls and corporate lobbies.4 - 06
Under Vehicle Surveillance (UVSS)
Full-chassis scan, the moment a vehicle arrives.
Embedded high-resolution UVSS with ANPR and driver-occupant cameras — a critical first line of defence at every vehicle entry point.5 - 07
Door-Frame Metal Detectors
Quick, unobtrusive, accurate.
Multi-zone DFMDs with adjustable sensitivity, pinpoint LED indicators and networked logging — for hotels, courts, places of worship, malls and government buildings.6 - 08
Boom Barriers & Motorised Gates
Controlled flow, every gate.
Boom barriers, sliding and swing gates, road blockers, bollards and turnstiles — integrated with ANPR, RFID and access control.7 - 10
Gas Suppression System
Fire put out without water touching the equipment.
Clean-agent and inert-gas fire suppression — the clean agent flooding system of consultant schedules — FM-200/HFC-227ea, fluoroketone-class NOVEC 1230, CO2 and inert-gas systems — for server rooms, data centres, archives, electrical and panel rooms and other spaces where water would do as much damage as the fire, engineered to readiness per NBC, relevant IS codes and NFPA 2001/12 for consultant and AHJ review.8 - 11
Fire Sprinkler System
Automatic water, only where the heat is.
Automatic water sprinkler systems — wet, dry, pre-action and deluge — engineered to readiness per NBC, relevant IS codes and NFPA 13, and coordinated with the fire-hydrant and fire-alarm systems for consultant and AHJ review.9 - 12
Emergency Lighting & Egress Signage
A lit, legible path out when the mains go dark.
Emergency and egress lighting with photoluminescent exit and wayfinding signage — self-test luminaires, central-battery systems and IS-compliant signage — designed so occupants can find and follow a marked route to a final exit when normal power fails, engineered to readiness per NBC and relevant IS codes for consultant and AHJ review.10 - 13
Fire Doors & Fire-Rated Shutters
The fire held at the doorway.
Fire-rated doorsets and rolling shutters — passive fire protection at compartment lines, staircases and service openings — with frames, closers, panic hardware and magnetic hold-open release coordinated with the fire alarm and the escape plan, supplied and installed where project-fit.11 - 14
Fire Extinguishers & Fire-Protection Goods
First response, within arm's reach.
Portable fire extinguishers — one of the three fire families (fire alarm, fire hydrant, fire extinguishers) — ABC dry powder, CO2, clean-agent, foam and water classes, with site-assessed placement, mounting, signage, refilling and AMC, along with related fire-protection goods and accessories.12 - 15
Automatic Tube Fire Detection & Suppression
Suppression born inside the cabinet.
Automatic Linear Pneumatic Tube Detection systems — enclosure-level fire detection and suppression for electrical panels, server and network racks, battery enclosures and machine cabinets — operating standalone without external power, in direct- and indirect-discharge configurations.13 - 16
Intrusion Detection & Alarm
Know the moment a boundary is crossed.
Intrusion and perimeter detection — door/window contacts, dual-tech motion sensors, glass-break, vibration and fence sensors, panic and alarm panels with app and central-station-ready monitoring — integrated with CCTV and access control.14 - 17
Intercom & Video Door Phone
See who's there before you open the door.
Intercom and video door phone (VDP) door-entry — audio and video door stations, indoor monitors, IP and 2-wire systems, lift and lobby intercom, apartment and villa door-entry — integrated with access control and mobile answer.15 - 18
Facial Recognition System
Recognised at the door. Logged, with consent.
AI face-recognition for access, attendance and surveillance — face-based entry, watchlist and VIP/denied-entry alerts — integrated with CCTV and access control on a consent-aware, privacy-respecting deployment.16 - 19
ANPR & Number-Plate Recognition
The plate decides the barrier.
Automatic number-plate recognition for gate automation, parking and visitor logging — plate-read cameras with watchlist alerts, integrated with boom barriers and access control.17
/ Where this system has been deployed
Nurse Calling System on the ground.
The reference projects below carry a nurse calling system layer engineered as part of an integrated stack. Each case study walks through the engineering challenges that were solved, the standards the work was held to, and the operational outcome on the day-two team.
Public project summaries describe systems and outcomes only — BOQ values, quantities, device counts and security layouts are kept off public surfaces.
Request a feasibility review/ Integration with
How nurse calling system talks to the rest.
A serious deployment of this system rarely operates in isolation. The disciplines below most commonly share its cabling pathways, its controller logic, and its cause-and-effect matrix.
Fire Alarm System
Detection that pinpoints. Response that is coordinated.
Addressable and conventional fire detection and alarm — one of the three fire families (fire alarm, fire hydrant, fire extinguishers) — Honeywell, Bosch, Notifier and Siemens panels — integrated with PA, BMS, access control and emergency lighting to readiness per NBC, IS 2189 and NFPA 72, for consultant and AHJ review.Professional Audio & PA Systems
Intelligible, every seat in the house.
Public address, voice-evacuation and concert-grade audio for auditoriums, places of worship, stadia, transit hubs and event venues.EPABX & IP-PBX
Voice, routed cleanly.
Enterprise voice — IP-PBX, SIP trunking, hosted UC and hospitality PMS integrations — Grandstream, NEC, Cisco and Yeastar.
/ Read deeper
The engineering, in long form.
Each article below goes deeper than this service page can — a full walk-through of the engineering decisions, written by the team that delivers this work.
- ELV · 12 min
CCTV design for hospitals: privacy zoning, retention windows and the camera count nobody calculates
Hospital surveillance is not a commercial brief with a medical sticker. Patient privacy, infection-control zoning, NABH audit retention and clinical-engineering veto rights mean the camera plan, the storage sizing and the analytics rules all read differently. The design discipline we have built around it.
Read article - BMS · 13 min
BMS retrofit playbook for occupied hospitals
A BMS retrofit in an occupied hospital is unlike any other commercial BMS retrofit. Patient-care continuity, NABH compliance, infection-control zoning and theatre uptime turn what would be a 12-week commercial project into a 28-week clinical exercise. The playbook we have learned across multiple projects, including the Tinsukia Medical College & Hospital delivery for NCC Limited.
Read article
Engineering toolkit
Tools to scope this work
Calculators and reference checkers we use ourselves to sense-check the engineering before any drawings change hands.
- Drawing readiness
Drawing & BOQ Readiness Checker
Check whether your drawings, schedules, BOQ/spec status, site access and project team are ready for a systems conversation. Advisory; no pricing, quantities or final scope.
Advisory · copyableOpen - Healthcare · Readiness
Healthcare ELV Readiness Checker
A readiness self-check for a hospital, diagnostic centre or clinic coordinating nurse call, CCTV, access, fire alarm + PA, network, patient TV and BMS for critical HVAC — with the gap list and who owes what. Statuses and bands only; no bed counts, layouts or camera specifics.
Advisory · readinessOpen - ELV · Reference
ELV / Life-Safety Building Map
Interactive cross-section of a building. Toggle between CCTV, access control, fire, PA, IP-PBX, server room and BMS — see device locations and where each cabling backbone lands.
7 layers · cross-sectionOpen
/ Engineering concepts
Related engineering concepts
Concept
Hospital ELV Stack
Clinical-occupancy ELV coordination — fire-alarm, nurse-call, medical-gas alarm, access-control, IP-CCTV and BMS converging on a cause-and-effect supervisory matrix with NABH pressure-boundary discipline and OT-anaesthesia acknowledgement-delay tiers.
Concept
Cause-and-Effect Matrix
Written, signed, witnessed table tying every input event (fire, nurse-call, medical-gas, access-control, CCTV, BMS) to every gated output (PA, AHU damper, lift, mag-holders, CCTV bookmark, BMS log) with acknowledgement-delay tiers.
Concept
ELV Cabling Backbone
The unified low-voltage cable plant carrying fire, CCTV, access, PA, IP-PBX, BMS and structured data across a building — coordinated as one cause-and-effect pathway rather than per-discipline runs.
Concept
Cat6A Structured Cabling
Augmented Category 6 structured cabling — 10 Gbps over the full 100 m channel, rated for 25 years of service. The default for any new commercial or premium-residential cabling layer.
/ Used alongside
Commonly deployed alongside
Service
Fire Alarm System
Detection that pinpoints. Response that is coordinated.
Sector
Healthcare
Hospitals where systems serve the patient.
Service
CCTV & Surveillance
Coverage. Storage. Evidence.
Service
Building Management System (BMS)
The building, on a single dashboard.
Service
Professional Audio & PA Systems
Intelligible, every seat in the house.
Service
Access Control
Right person. Right door. Right time.
/ Plan it right
Nurse Calling System — getting the brief right.
Common mistakes to avoid
- Designing nurse-call in isolation from the ward workflow it is meant to serve.
- Forgetting the integration points — PA, telephony, mobile handsets and the duty-station displays staff actually watch.
- Under-specifying points (bed, toilet pull-cord, staff-assist, code-blue) for the clinical use of each room.
- Ignoring escalation logic — what happens when a call is not answered in time.
- Treating it as a low-voltage afterthought rather than part of the hospital's coordinated communication and life-safety stack.
What to share before a quotation
- Department and ward layouts with bed and room counts and room types.
- The clinical workflow — who responds, from where, and the escalation rules.
- Integration scope — PA, IP-PBX / telephony, CCTV, mobile alerting.
- Any NABH or institutional standard to design toward.
- Whether this is new-build or an addition to existing infrastructure.
/ Frequently asked
Nurse Calling System — what buyers ask first.
What is HTM 08-03 and do we need it?
HTM 08-03 is the UK NHS nurse-call standard, widely adopted as international best practice — it defines call categories, escalation timers, audibility and reliability. We design to HTM 08-03 even for private hospitals because it produces a measurably better patient experience.
What does a NABH-readable nurse-call system include?
Bedside call station, bathroom emergency pull, patient-station handset with voice, staff-presence button, code-blue emergency, dome-light corridor indication with priority colour code, central nursing-station console with audio and patient identification, integration with patient-monitoring and call-routing logic. We engineer to NABH and JCI accreditation expectations.
Which nurse-call platform is right for a hospital?
Choice follows the hospital's workflow, bed-system integration, nurse-mobility needs and reporting requirements. Premium hospitals usually need occupancy and exit-alert integration, workflow analytics, DECT or smartphone routing, and a service model the biomedical and nursing teams can operate confidently.
How is a code-blue actually handled?
A red code-blue button at any bedside or bathroom triggers immediate audio-visual alarm at the central console, automatic dispatch to the response team's mobile or pager network, dome-light at the room corridor, and integration with the building PA for overhead announcement if configured. The cause-and-effect logic is programmed once and tested per shift.
Wired or wireless nurse-call?
Wired is the right answer for any new hospital — reliability above 99.9% is required and wireless cannot match it. We retrofit wireless extensions only where adding a station to an existing wired backbone is more disruptive than the wireless reliability cost.
What's the AMC for a nurse-call system?
Quarterly preventive checks across all bedside, bathroom and corridor equipment (button function, dome lights, audio paths), annual full-system commissioning re-test, and escalation path documented in the AMC scope for code-blue events. Spare console, dome lights and bedside stations held in our office. The AMC is scoped to the system's criticality and priced in writing after review.
· Begin
Begin a
nurse calling system
brief.
Tell us about the building, the timeline, and what success looks like a year after handover. We will reply within two working days with a written response, not a sales pitch.
