07 / 19
Case file

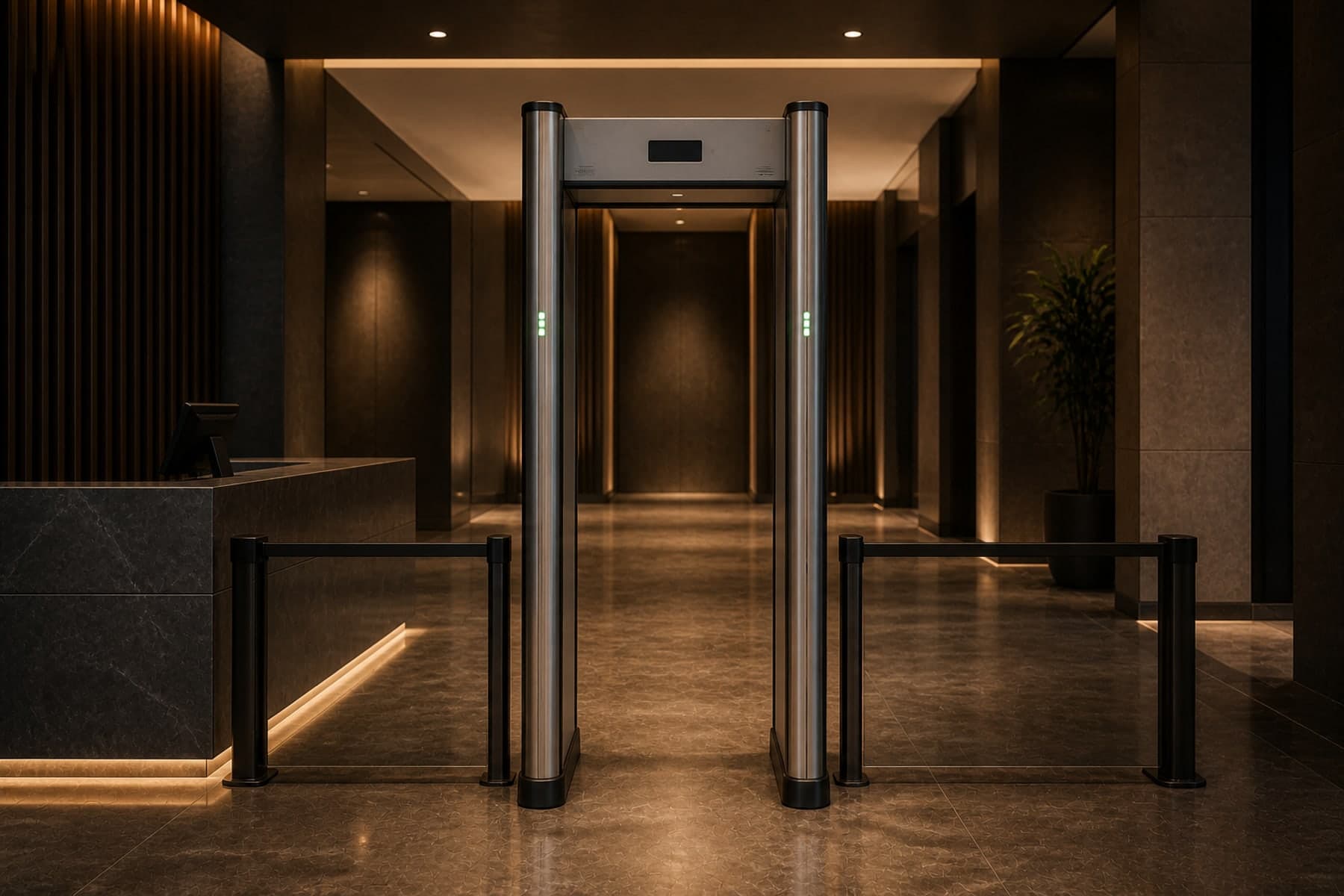

Multi-zone DFMDs with adjustable sensitivity, pinpoint LED indicators and networked logging — for hotels, courts, places of worship, malls and government buildings.
| Aspect | Single-zone DFMD | Multi-zone DFMD |
|---|---|---|
| Alarm location | Alarms without telling where | Identifies the exact body region for targeted follow-up |
| Throughput | Every alarm needs a full wand sweep | Faster throughput via targeted secondary screening |
| Calibration | Fixed sensitivity | Programmable per shift, networked to a central event log |
Educational comparison of screening methods — not a statement about any specific installer.
/ The discipline, in detail
How we approach door-frame metal detectors.
Most lobby walk-throughs are an exercise in alarm-fatigue. Cheap detectors over-trigger on belt buckles and watches, the operator stops looking, and the screening loses its meaning by Tuesday afternoon. We deploy multi-zone units calibrated to the venue's real threat envelope — programmable per shift, networked to a central event log, and chosen for the discrimination performance that keeps false positives below a workable noise floor.
Sensitivity profiles are commissioned alongside the X-ray and frisk policy so that the three layers complement rather than duplicate each other. Logs are exported on schedule for compliance and forensic queries; firmware updates are managed as part of the AMC rather than left to chance.
On record
Every door-frame metal detectors engagement is documented end-to-end — design, programming, commissioning, calibration — and handed over with the files our successors would need if we were never to return.
/ Where we deploy this
Active across 4 sectors.
Door-Frame Metal Detectors is rarely a standalone brief — it sits inside a wider sector practice with its own codes, expectations and operating rhythm.
/ Sister services
The rest of elv.
A serious brief usually crosses two or three of these. Read across the discipline — we deliver them as one contract.
- 01
CCTV & Surveillance
Coverage. Storage. Evidence.
IP video surveillance — Hikvision, Dahua, Axis, Bosch — designed to coverage, recording-bandwidth and retention specifications, with VMS and AI-analytics overlays.0 - 02
Access Control
Right person. Right door. Right time.
Card, biometric, mobile-credential and visitor-management — Honeywell, HID, Matrix and Suprema — integrated with CCTV, intrusion and HR systems.1 - 03
Fire Alarm System
Detection that pinpoints. Response that is coordinated.
Addressable and conventional fire detection and alarm — one of the three fire families (fire alarm, fire hydrant, fire extinguishers) — Honeywell, Bosch, Notifier and Siemens panels — integrated with PA, BMS, access control and emergency lighting to readiness per NBC, IS 2189 and NFPA 72, for consultant and AHJ review.2 - 04
Fire Hydrant System
High-volume water, precisely where it's needed.
Wet- and dry-riser hydrant systems — one of the three fire families (fire alarm, fire hydrant, fire extinguishers) — jockey-and-main pump rooms, yard hydrants and four-way fire-brigade inlets, engineered to readiness per NBC, IS 13039 and NFPA 14 for consultant and AHJ review.3 - 05
X-Ray Baggage Scanners
Operator confidence, in seconds.
Dual-energy X-ray baggage and parcel scanners for airports, hotels, government buildings, courts, malls and corporate lobbies.4 - 06
Under Vehicle Surveillance (UVSS)
Full-chassis scan, the moment a vehicle arrives.
Embedded high-resolution UVSS with ANPR and driver-occupant cameras — a critical first line of defence at every vehicle entry point.5 - 08
Boom Barriers & Motorised Gates
Controlled flow, every gate.
Boom barriers, sliding and swing gates, road blockers, bollards and turnstiles — integrated with ANPR, RFID and access control.6 - 09
Nurse Calling System
Patient request to nurse response. Documented.
IP-based nurse call systems with bedside, bathroom, code-blue and staff-presence stations, integrated with mobile and PA.7 - 10
Gas Suppression System
Fire put out without water touching the equipment.
Clean-agent and inert-gas fire suppression — the clean agent flooding system of consultant schedules — FM-200/HFC-227ea, fluoroketone-class NOVEC 1230, CO2 and inert-gas systems — for server rooms, data centres, archives, electrical and panel rooms and other spaces where water would do as much damage as the fire, engineered to readiness per NBC, relevant IS codes and NFPA 2001/12 for consultant and AHJ review.8 - 11
Fire Sprinkler System
Automatic water, only where the heat is.
Automatic water sprinkler systems — wet, dry, pre-action and deluge — engineered to readiness per NBC, relevant IS codes and NFPA 13, and coordinated with the fire-hydrant and fire-alarm systems for consultant and AHJ review.9 - 12
Emergency Lighting & Egress Signage
A lit, legible path out when the mains go dark.
Emergency and egress lighting with photoluminescent exit and wayfinding signage — self-test luminaires, central-battery systems and IS-compliant signage — designed so occupants can find and follow a marked route to a final exit when normal power fails, engineered to readiness per NBC and relevant IS codes for consultant and AHJ review.10 - 13
Fire Doors & Fire-Rated Shutters
The fire held at the doorway.
Fire-rated doorsets and rolling shutters — passive fire protection at compartment lines, staircases and service openings — with frames, closers, panic hardware and magnetic hold-open release coordinated with the fire alarm and the escape plan, supplied and installed where project-fit.11 - 14
Fire Extinguishers & Fire-Protection Goods
First response, within arm's reach.
Portable fire extinguishers — one of the three fire families (fire alarm, fire hydrant, fire extinguishers) — ABC dry powder, CO2, clean-agent, foam and water classes, with site-assessed placement, mounting, signage, refilling and AMC, along with related fire-protection goods and accessories.12 - 15
Automatic Tube Fire Detection & Suppression
Suppression born inside the cabinet.
Automatic Linear Pneumatic Tube Detection systems — enclosure-level fire detection and suppression for electrical panels, server and network racks, battery enclosures and machine cabinets — operating standalone without external power, in direct- and indirect-discharge configurations.13 - 16
Intrusion Detection & Alarm
Know the moment a boundary is crossed.
Intrusion and perimeter detection — door/window contacts, dual-tech motion sensors, glass-break, vibration and fence sensors, panic and alarm panels with app and central-station-ready monitoring — integrated with CCTV and access control.14 - 17
Intercom & Video Door Phone
See who's there before you open the door.
Intercom and video door phone (VDP) door-entry — audio and video door stations, indoor monitors, IP and 2-wire systems, lift and lobby intercom, apartment and villa door-entry — integrated with access control and mobile answer.15 - 18
Facial Recognition System
Recognised at the door. Logged, with consent.
AI face-recognition for access, attendance and surveillance — face-based entry, watchlist and VIP/denied-entry alerts — integrated with CCTV and access control on a consent-aware, privacy-respecting deployment.16 - 19
ANPR & Number-Plate Recognition
The plate decides the barrier.
Automatic number-plate recognition for gate automation, parking and visitor logging — plate-read cameras with watchlist alerts, integrated with boom barriers and access control.17
/ Integration with
How door-frame metal detectors talks to the rest.
A serious deployment of this system rarely operates in isolation. The disciplines below most commonly share its cabling pathways, its controller logic, and its cause-and-effect matrix.
Access Control
Right person. Right door. Right time.
Card, biometric, mobile-credential and visitor-management — Honeywell, HID, Matrix and Suprema — integrated with CCTV, intrusion and HR systems.X-Ray Baggage Scanners
Operator confidence, in seconds.
Dual-energy X-ray baggage and parcel scanners for airports, hotels, government buildings, courts, malls and corporate lobbies.CCTV & Surveillance
Coverage. Storage. Evidence.
IP video surveillance — Hikvision, Dahua, Axis, Bosch — designed to coverage, recording-bandwidth and retention specifications, with VMS and AI-analytics overlays.
Engineering toolkit
Tools to scope this work
Calculators and reference checkers we use ourselves to sense-check the engineering before any drawings change hands.
- AV · LED
LED Wall Size Calculator
Direct-view LED wall sizing across a verified, source-cited model catalogue including Samsung, LG MAGNIT, Sony, Philips, Leyard, Absen, Unilumin, ROE Visual, AOTO, INFiLED, Daktronics, Planar, Nanolumens and more. Cabinet count, native resolution, brightness adequacy, power and weight — with pitch-vs-distance honesty and camera-refresh flags. Sources cited per model.
50 brands · pitch-awareOpen - AV · Audio · Coverage
Speaker Coverage Planner
Engineering-grade speaker coverage and SPL planner across a verified, source-cited public model catalogue spanning pro touring, commercial audio and architectural speakers. Predicts SPL at listener distance, coverage radius on the -6 dB dispersion axis and quantity needed for the room.
50 brands · SPL predictionOpen - Auditorium AV · Readiness
Auditorium AV Scope & Readiness Planner
A scope-level self-check for an auditorium, convention or multipurpose hall — the AV signal chain (sources, mixing & DSP, amplification & loudspeaker zones, projection, stage-lighting, assistive listening, recording, control), plus acoustics, infrastructure and operations — with the gap list and who owes what. Statuses and bands only; no seat counts, SPL targets or model choices.
Advisory · readinessOpen
/ Used alongside
Commonly deployed alongside
Sector
Government & Public Safety
Mission-grade integration.
Service
Fire Alarm System
Detection that pinpoints. Response that is coordinated.
Service
CCTV & Surveillance
Coverage. Storage. Evidence.
Service
Access Control
Right person. Right door. Right time.
Service
X-Ray Baggage Scanners
Operator confidence, in seconds.
Service
Under Vehicle Surveillance (UVSS)
Full-chassis scan, the moment a vehicle arrives.
/ Plan it right
Door-Frame Metal Detectors — getting the brief right.
Common mistakes to avoid
- Placing the frame where structural steel, rebar or nearby machinery keeps it in permanent false alarm.
- Setting sensitivity once at installation and never revisiting it against the venue's real threat policy and alarm-fatigue reality.
- No secondary-screening procedure — a detector without a wand-and-frisk plan behind it only produces queues.
- A screening layout people can simply walk around — the flow design matters as much as the device.
- Buying single-zone units for a high-throughput venue where zone indication is what keeps the queue moving.
What to share before a quotation
- The entry layout and expected peak footfall per entrance.
- The screening policy — what the venue screens for and the response procedure behind an alarm.
- The surrounding structure — metal in floors, frames and walls near the intended position.
- Whether X-ray baggage screening runs alongside at the same point.
- Power availability and whether event logging or networking is required.
/ Frequently asked
Door-Frame Metal Detectors — what buyers ask first.
Multi-zone vs single-zone DFMD?
Multi-zone DFMD identifies the exact body region (head/chest/waist/ankle) for targeted secondary screening and dramatically faster throughput; single-zone only alarms without location, so every alarm requires a wand follow-up.
How many zones should a DFMD have?
12–16 zones is the modern default for commercial and government deployment. Cheaper 6-zone units cannot localise the metallic object's height accurately, which slows handheld follow-up. Premium deployments at airports and government use 33-zone units. We specify 18-zone Garrett or CEIA for most premium projects.
How sensitive should the DFMD be set?
Sensitivity is calibrated against the operational profile — a hospitality DFMD at a hotel lobby is calibrated to ignore typical jewellery and belt buckles while still catching firearms. A government DFMD is calibrated tighter. Calibration is per location and reviewed quarterly during AMC.
Is DFMD effective for non-ferrous metal?
Premium DFMDs (Garrett PD-6500i, CEIA HI-PE) detect both ferrous and non-ferrous metals — including aluminium and copper. Cheaper units sometimes miss non-ferrous; we don't specify those for commercial deployments.
How do we handle pacemakers and medical implants at DFMD?
DFMDs at standard sensitivity do not affect pacemakers or modern medical implants (the magnetic field is too weak), but we always provide a 'medical bypass' path — a side route with handheld screening for guests with implants, and signage explaining it. Standard procedure for our hospital-grade and hospitality deployments.
Does the DFMD integrate with the X-ray scanner workflow?
Yes — we route the entry through DFMD first, then bag-X-ray, with operator coordination through a shared monitoring station. The combination filters threats at two complementary axes (person and bag) and is the standard configuration we deploy at premium hospitality and government entries.
