Case file

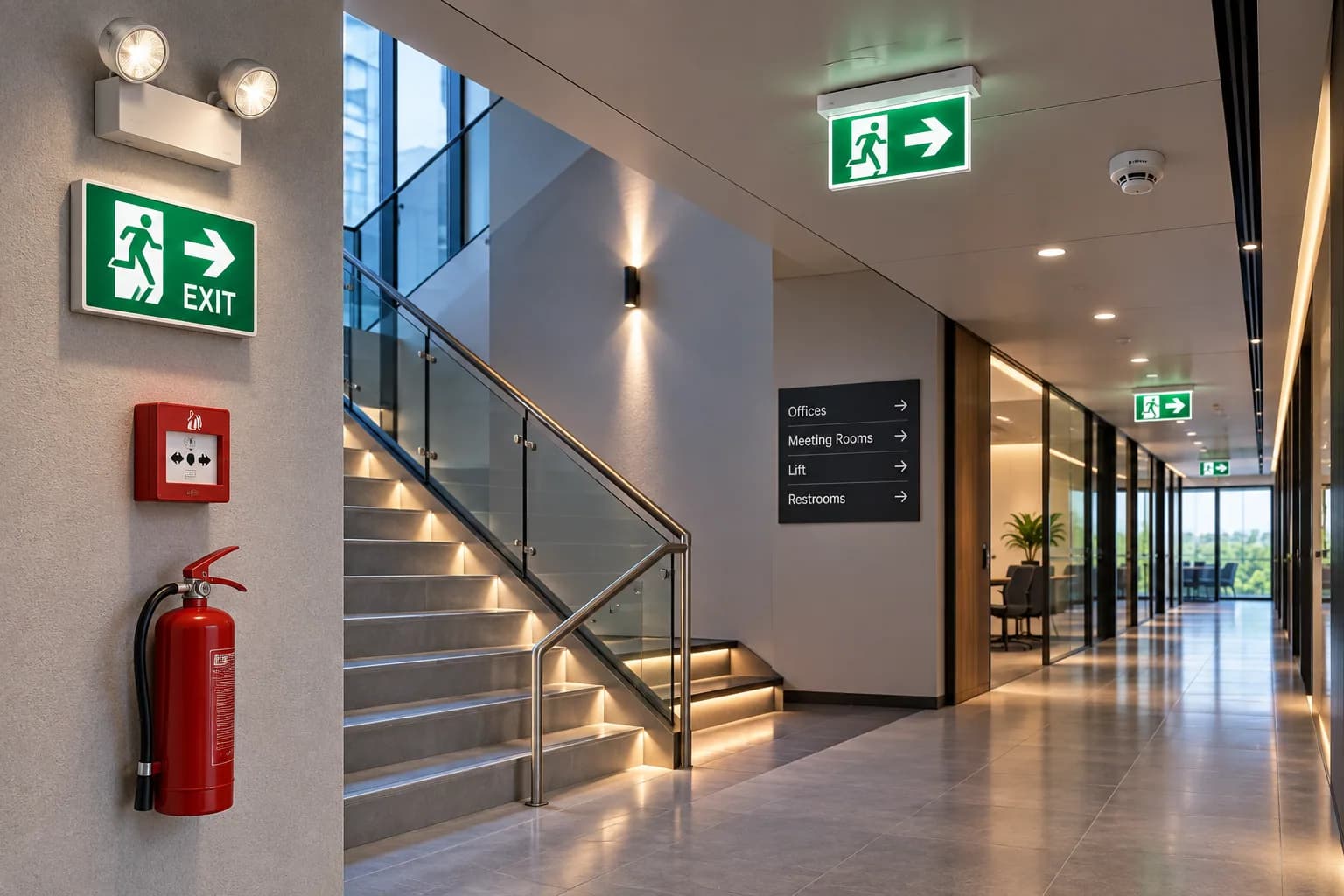

Emergency and egress lighting with photoluminescent exit and wayfinding signage — self-test luminaires, central-battery systems and IS-compliant signage — designed so occupants can find and follow a marked route to a final exit when normal power fails, engineered to readiness per NBC and relevant IS codes for consultant and AHJ review.
| Requirement | Code-minimum approach | Engineered approach |
|---|---|---|
| Luminaire placement | Fittings scattered on a grid | Placed to the escape-route plan — stairs, intersections, level and direction changes, final exits |
| System type | One type chosen on cost | Self-test luminaires or central-battery system chosen by building size, staffing and maintenance model |
| Verification | Assumed to work | Commissioned for strike-on-fail and rated-duration discharge, with photoluminescent signage as a redundant layer |
Educational comparison of design rigour — final approval rests with the AHJ/consultant.
/ The discipline, in detail
How we approach emergency lighting & egress signage.
When the mains drop during a fire or a power failure, the corridors and stairs that were obvious a minute ago become hazards. Emergency lighting exists to hold those escape routes legible — illuminating the path, the changes of level, the direction changes and the final exit doors for long enough that everyone gets out. We design to the escape-route plan rather than scattering fittings on a grid: luminaires placed at every stair, intersection, corridor and exit so the route stays above the required illuminance, and the open-area and high-risk-task lighting where the building's use demands it. The choice between self-contained self-test luminaires and a central-battery system follows from the building's size, maintenance model and how it is staffed.
Photoluminescent exit and directional signage carries the same logic into the parts of evacuation that lighting alone cannot — a charged, glowing marker that keeps working even if a luminaire near it has failed, mounted at the sightlines and heights that keep the route readable through smoke and crowding. We commission the system as a tested whole: every luminaire proven to strike on loss of mains, every battery proven to hold its rated duration, and the signage scheme checked against the actual escape routes. Self-test fittings report their own lamp and battery health, and the AMC keeps the full-duration discharge tests and signage checks on a calendar with records kept for inspection. Readiness is our deliverable; final approval rests with the AHJ/consultant, so verify with the AHJ/consultant.
On record
Every emergency lighting & egress signage engagement is documented end-to-end — design, programming, commissioning, calibration — and handed over with the files our successors would need if we were never to return.
/ Zone plan
Egress, zone by zone
Emergency luminaires and photoluminescent signage are planned against the same floor-plate zoning as detection — every escape route accounted for.
Diagrammatic view — a system planning illustration for design discussion, not a project drawing or live interface.
/ Where we deploy this
Active across 6 sectors.
Emergency Lighting is rarely a standalone brief — it sits inside a wider sector practice with its own codes, expectations and operating rhythm.
Hospitality
Guest experience, engineered.
Commercial & Corporate
Workplaces that begin meetings on time.
Education & Institutions
Schools, colleges and universities.
Healthcare
Hospitals where systems serve the patient.
Retail & Malls
Footfall, loyalty, footprint.
Industrial & Warehousing
Operations that don't take a day off.
/ Sister services
The rest of elv.
A serious brief usually crosses two or three of these. Read across the discipline — we deliver them as one contract.
- 01
CCTV & Surveillance
Coverage. Storage. Evidence.
IP video surveillance — Hikvision, Dahua, Axis, Bosch — designed to coverage, recording-bandwidth and retention specifications, with VMS and AI-analytics overlays.0 - 02
Access Control
Right person. Right door. Right time.
Card, biometric, mobile-credential and visitor-management — Honeywell, HID, Matrix and Suprema — integrated with CCTV, intrusion and HR systems.1 - 03
Fire Alarm System
Detection that pinpoints. Response that is coordinated.
Addressable and conventional fire detection and alarm — one of the three fire families (fire alarm, fire hydrant, fire extinguishers) — Honeywell, Bosch, Notifier and Siemens panels — integrated with PA, BMS, access control and emergency lighting to readiness per NBC, IS 2189 and NFPA 72, for consultant and AHJ review.2 - 04
Fire Hydrant System
High-volume water, precisely where it's needed.
Wet- and dry-riser hydrant systems — one of the three fire families (fire alarm, fire hydrant, fire extinguishers) — jockey-and-main pump rooms, yard hydrants and four-way fire-brigade inlets, engineered to readiness per NBC, IS 13039 and NFPA 14 for consultant and AHJ review.3 - 05
X-Ray Baggage Scanners
Operator confidence, in seconds.
Dual-energy X-ray baggage and parcel scanners for airports, hotels, government buildings, courts, malls and corporate lobbies.4 - 06
Under Vehicle Surveillance (UVSS)
Full-chassis scan, the moment a vehicle arrives.
Embedded high-resolution UVSS with ANPR and driver-occupant cameras — a critical first line of defence at every vehicle entry point.5 - 07
Door-Frame Metal Detectors
Quick, unobtrusive, accurate.
Multi-zone DFMDs with adjustable sensitivity, pinpoint LED indicators and networked logging — for hotels, courts, places of worship, malls and government buildings.6 - 08
Boom Barriers & Motorised Gates
Controlled flow, every gate.
Boom barriers, sliding and swing gates, road blockers, bollards and turnstiles — integrated with ANPR, RFID and access control.7 - 09
Nurse Calling System
Patient request to nurse response. Documented.
IP-based nurse call systems with bedside, bathroom, code-blue and staff-presence stations, integrated with mobile and PA.8 - 10
Gas Suppression System
Fire put out without water touching the equipment.
Clean-agent and inert-gas fire suppression — the clean agent flooding system of consultant schedules — FM-200/HFC-227ea, fluoroketone-class NOVEC 1230, CO2 and inert-gas systems — for server rooms, data centres, archives, electrical and panel rooms and other spaces where water would do as much damage as the fire, engineered to readiness per NBC, relevant IS codes and NFPA 2001/12 for consultant and AHJ review.9 - 11
Fire Sprinkler System
Automatic water, only where the heat is.
Automatic water sprinkler systems — wet, dry, pre-action and deluge — engineered to readiness per NBC, relevant IS codes and NFPA 13, and coordinated with the fire-hydrant and fire-alarm systems for consultant and AHJ review.10 - 13
Fire Doors & Fire-Rated Shutters
The fire held at the doorway.
Fire-rated doorsets and rolling shutters — passive fire protection at compartment lines, staircases and service openings — with frames, closers, panic hardware and magnetic hold-open release coordinated with the fire alarm and the escape plan, supplied and installed where project-fit.11 - 14
Fire Extinguishers & Fire-Protection Goods
First response, within arm's reach.
Portable fire extinguishers — one of the three fire families (fire alarm, fire hydrant, fire extinguishers) — ABC dry powder, CO2, clean-agent, foam and water classes, with site-assessed placement, mounting, signage, refilling and AMC, along with related fire-protection goods and accessories.12 - 15
Automatic Tube Fire Detection & Suppression
Suppression born inside the cabinet.
Automatic Linear Pneumatic Tube Detection systems — enclosure-level fire detection and suppression for electrical panels, server and network racks, battery enclosures and machine cabinets — operating standalone without external power, in direct- and indirect-discharge configurations.13 - 16
Intrusion Detection & Alarm
Know the moment a boundary is crossed.
Intrusion and perimeter detection — door/window contacts, dual-tech motion sensors, glass-break, vibration and fence sensors, panic and alarm panels with app and central-station-ready monitoring — integrated with CCTV and access control.14 - 17
Intercom & Video Door Phone
See who's there before you open the door.
Intercom and video door phone (VDP) door-entry — audio and video door stations, indoor monitors, IP and 2-wire systems, lift and lobby intercom, apartment and villa door-entry — integrated with access control and mobile answer.15 - 18
Facial Recognition System
Recognised at the door. Logged, with consent.
AI face-recognition for access, attendance and surveillance — face-based entry, watchlist and VIP/denied-entry alerts — integrated with CCTV and access control on a consent-aware, privacy-respecting deployment.16 - 19
ANPR & Number-Plate Recognition
The plate decides the barrier.
Automatic number-plate recognition for gate automation, parking and visitor logging — plate-read cameras with watchlist alerts, integrated with boom barriers and access control.17
/ Integration with
How emergency lighting talks to the rest.
A serious deployment of this system rarely operates in isolation. The disciplines below most commonly share its cabling pathways, its controller logic, and its cause-and-effect matrix.
Fire Alarm System
Detection that pinpoints. Response that is coordinated.
Addressable and conventional fire detection and alarm — one of the three fire families (fire alarm, fire hydrant, fire extinguishers) — Honeywell, Bosch, Notifier and Siemens panels — integrated with PA, BMS, access control and emergency lighting to readiness per NBC, IS 2189 and NFPA 72, for consultant and AHJ review.Fire Hydrant System
High-volume water, precisely where it's needed.
Wet- and dry-riser hydrant systems — one of the three fire families (fire alarm, fire hydrant, fire extinguishers) — jockey-and-main pump rooms, yard hydrants and four-way fire-brigade inlets, engineered to readiness per NBC, IS 13039 and NFPA 14 for consultant and AHJ review.Fire Doors & Fire-Rated Shutters
The fire held at the doorway.
Fire-rated doorsets and rolling shutters — passive fire protection at compartment lines, staircases and service openings — with frames, closers, panic hardware and magnetic hold-open release coordinated with the fire alarm and the escape plan, supplied and installed where project-fit.
Engineering toolkit
Tools to scope this work
Calculators and reference checkers we use ourselves to sense-check the engineering before any drawings change hands.
- Life-safety · 28 states + 8 UTs
NBC Fire-Safety by State
State or union territory, building height and occupancy in — list of sprinkler, addressable FA, voice-evac PA, wet-riser and Fire-NOC triggers out, with explicit source-status tiering across all 28 Indian states and 8 union territories.
NBC 2016 · state ruleOpen - ELV · Surveillance · Storage
CCTV Storage Retention Calculator
Multi-brand, codec-aware CCTV storage retention sizing across a verified, source-cited camera-profile catalogue including Hikvision, Dahua, Axis, Hanwha, Bosch, Honeywell, CP Plus, Ubiquiti, Verkada, Meraki, Avigilon, Pelco and more. Computes storage TB, HDD count plan, recorded bandwidth and an NVR/VMS class recommendation against camera count. Pairs with the CCTV Coverage Calculator.
50 brands · codec-awareOpen - Life-safety
NBC Compliance Checker
Building height, type and occupancy in — list of mandatory life-safety and ELV systems out, citing NBC 2016 and the relevant IS codes.
NBC 2016 · IS codesOpen
/ Engineering concepts
Related engineering concepts
Concept
Fire Cause-and-Effect Matrix
A written specification that documents what each life-safety event triggers across the connected systems — lift recall, magnetic door release, PA announcement, AHU damper close, CCTV pre-record, access evacuation mode.
Concept
Fire-Alarm ↔ PA Interoperability
Addressable fire-alarm panel ↔ EN 54-16-benchmarked PA voice-evac integration under NBC 2016 Part 4's voice-evacuation provisions. The fire panel triggers zone-specific evacuation announcements with STI ≥ 0.5 intelligibility across the affected zones.
Concept
National Building Code 2016 (India)
India's umbrella building-services code. Sets fire and life-safety, structural, building-services and accessibility requirements that every ELV, fire, PA and BMS scope must cite line-by-line.
Concept
Honeywell Building & Security Ecosystem
Honeywell BMS (Niagara framework), Pro-Watch access control and addressable fire-alarm — used as the supervisory and life-safety backbone for premium commercial and hospitality buildings.
/ Used alongside
Commonly deployed alongside
Service
Fire Alarm System
Detection that pinpoints. Response that is coordinated.
Service
Fire Hydrant System
High-volume water, precisely where it's needed.
Service
Fire Doors & Fire-Rated Shutters
The fire held at the doorway.
Service
Fire Extinguishers & Fire-Protection Goods
First response, within arm's reach.
Sector
Hospitality
Guest experience, engineered.
Sector
Healthcare
Hospitals where systems serve the patient.
/ Plan it right
Emergency Lighting & Egress Signage — getting the brief right.
Common mistakes to avoid
- Treating emergency lighting as a fitting count instead of an illuminance design along the actual escape route.
- Signage that points toward an exit but breaks the chain at corridor junctions and stairs, so the route cannot be followed to a final exit.
- Choosing self-contained luminaires versus a central-battery system on first cost alone, without weighing the testing and maintenance burden across the building's life.
- Handing over without recorded duration and strike-on-fail tests, so compliance is an assumption rather than a record.
- Forgetting open-area (anti-panic) and high-risk-task lighting where the occupancy genuinely needs it.
What to share before a quotation
- Floor plans with escape routes, exits and stair positions marked.
- Occupancy type and operating hours — where people sleep or gather changes the design.
- Any preference or constraint between self-test luminaires and a central-battery system.
- How the normal lighting is circuited — which distribution boards feed which areas.
- Any consultant or fire-authority note on emergency lighting or signage already issued.
/ Frequently asked
Emergency Lighting & Egress Signage — what buyers ask first.
Self-test luminaires or a central-battery system?
Self-contained luminaires carry their own battery and, in self-test versions, report their own lamp and battery health — simple to deploy and well suited to distributed layouts. A central-battery system powers the emergency fittings from one monitored battery room, which simplifies testing and maintenance in larger or staffed buildings. We choose between them on the building's size, how it is maintained and how the escape routes are arranged.
Why photoluminescent signage as well as lit exit signs?
Photoluminescent signs charge from ambient light and then glow on their own with no wiring or battery, so they keep marking the route even if a nearby luminaire or the supply to a lit sign has failed. Used alongside illuminated exit signs and emergency lighting they add a redundant, low-mounted layer that stays readable through smoke and crowding. We lay the signage out against the building's actual escape routes and sightlines.
How long do emergency lights stay on when power fails?
They are designed to a specified duration — commonly between one and three hours depending on the occupancy and its evacuation strategy — and that duration is proven by discharge testing at commissioning, not assumed from the datasheet. The duration requirement is one of the first things we confirm from the project's occupancy type.
How often should emergency lighting be tested after handover?
Typical practice is a brief periodic function check plus a scheduled full-duration discharge test, with every result recorded — the record is what an inspection actually asks for. Self-test luminaires automate the routine and report failures; central-battery systems concentrate the testing at one point. We set the regime up as part of handover or AMC scope.
We already have a DG set — do we still need emergency lighting?
Yes. A generator has a start-up gap and shared points of failure, and the escape route needs light in exactly that gap. Emergency luminaires and exit signage are designed to operate instantly and independently of the normal and standby supplies — the DG changes the runtime story, not the requirement.
· Begin
Begin a
emergency lighting & egress signage
brief.
Tell us about the building, the timeline, and what success looks like a year after handover. We will reply within two working days with a written response, not a sales pitch.
