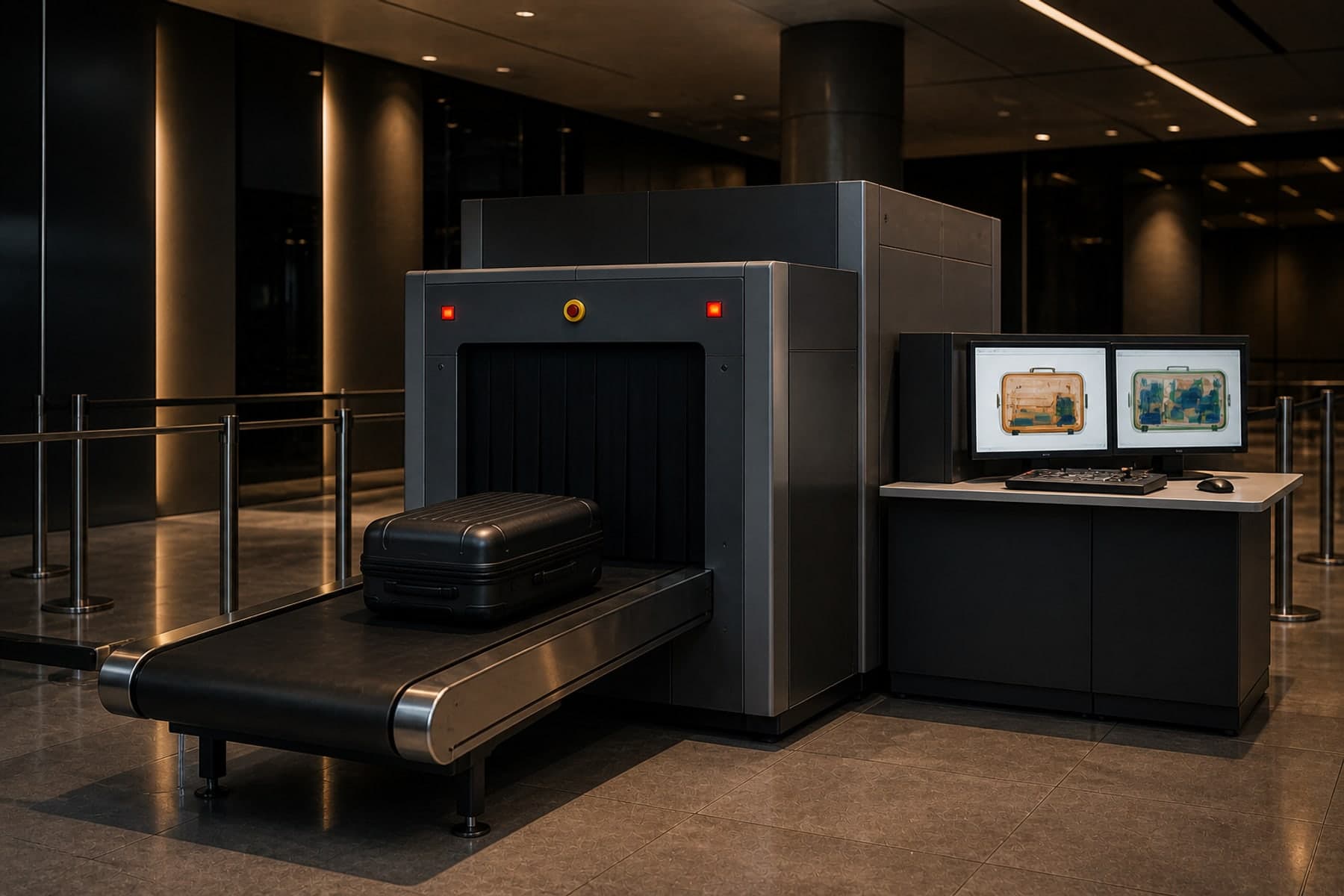

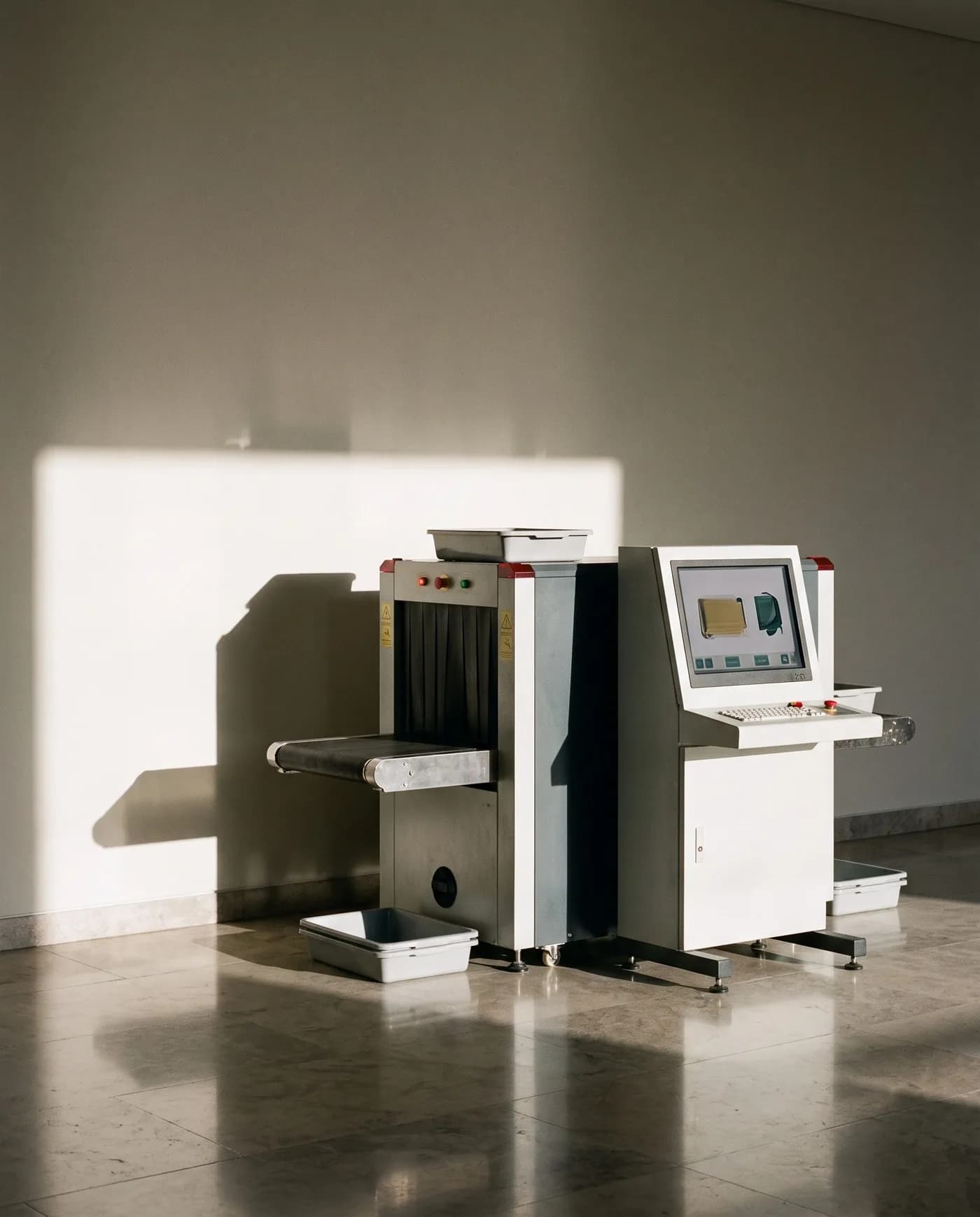

Dual-energy X-ray baggage and parcel scanners for airports, hotels, government buildings, courts, malls and corporate lobbies.
/ The discipline, in detail
How we approach x-ray baggage scanners.
Scanner performance is most often limited by the operator, not the machine. The image quality on premium dual-energy systems is essentially solved; what differentiates a working screening checkpoint from a theatre of one is whether the operator on hour seven of an eight-hour shift can still read the bag. We specify systems with strong material discrimination, threat-image projection (TIP) for ongoing operator training, and supervisor consoles that catch fatigue patterns before they become incidents.
AERB radiation-safety paperwork, room shielding calculations, conveyor footprint, and tunnel size are all engineered to your actual flow profile rather than a brochure default. We commission with calibrated test phantoms, hand over an operator manual in plain language, and stay on AMC with response targets you can measure us against.
On record
Every x-ray baggage scanners engagement is documented end-to-end — design, programming, commissioning, calibration — and handed over with the files our successors would need if we were never to return.
/ Three lenses on the same system
Read it the way you actually need it.
Three short readings of x-ray baggage scanners — for a non-engineer who needs the picture, an engineer who needs the spec, and a buyer who needs to see the system in operation.
/ In simple terms
An X-ray scanner shows the operator what is inside every bag passing through the screening lane. The image quality on a modern dual-energy system is essentially solved — what determines whether the checkpoint actually works is whether the operator on hour seven of an eight-hour shift can still read the bag. Threat-image projection, supervisor consoles and rotation discipline are the engineering that makes the technology operational.
/ Technical explanation
A dual-energy X-ray baggage scanner is an AERB Type-Approved imaging system with a lead-shielded tunnel (60×40 to 150×180), 24-inch operator console with manipulation tools, threat-image projection injecting fictitious threats at a defined rate, and a supervisor console with TIP-analytics and operator-performance dashboards. Operator vigilance is the dominant performance variable; 25/5 or 45-minute rotation through second-line review, AERB-licensed personnel and quarterly dose-rate surveillance are mandatory engineering line-items.
/ Real project usage
Deployed at hotel and corporate lobbies in Guwahati and Kolkata with 60×40 and 100×80 tunnels, sized to the actual bag profile rather than the brochure default. Operator training includes TIP-baseline calibration and quarterly recertification; AERB licence calendar held in the AMC pack with 90-day early-warning to the licensee. Room shielding calculated per workload; supervisor console set above the operator on a separate desk so review-on-demand is friction-free.
/ System architecture
The layers, named.
Every layer below is engineered as one piece of the integrated stack. Each carries its own commissioning artefact and its own AMC inclusion.
- 01
Scanner tunnel — single-view (overhead X-ray emitter) or dual-view (overhead + side), with tunnel sizes ranging from 60×40 cm for handbag screening through 100×80 for full carry-on luggage to 150×180 for palletised cargo. Conveyor speed 0.2 m/s, image resolution sufficient for material discrimination.
- 02
Dual-energy imaging — high- and low-energy X-ray penetration produces an image where atomic number can be inferred (organic / inorganic / metallic), colour-coded on the operator display for fast threat-recognition.
- 03
Threat-image projection (TIP) — fictitious threat images periodically injected into the live operator stream so the operator's vigilance and detection accuracy are continuously measured against a known baseline. TIP rate, false-positive rate and operator response-time logged.
- 04
Operator console — 24-inch primary display with manipulation tools (zoom, density-strip, organic-only, inorganic-only, edge-enhance), and a supervisor console one tier up for review-on-demand, override and TIP-stats access.
- 05
Shielding and radiation safety — lead-curtain entry/exit and lead-lined tunnel walls reduce dose rate at 5 cm from any external surface to below AERB's 0.5 μSv/h threshold. Room shielding (lead, barium-loaded plaster, or concrete equivalent) calculated per workload and room footprint.
/ Design considerations
The decisions we take early.
- Operator fatigue is the dominant performance variable. Eight-hour shifts at the console are unsafe at any image quality — split into 25/5 alternations or 45-minute rotations through second-line review, with TIP-monitored attention checks.
- Tunnel size is sized to actual item profile, not nameplate. Hotel and corporate lobbies pass handbags and laptop bags — 60×40 is sufficient. Courts, government and airports pass full carry-on suitcases — 100×80 is the minimum. Cargo screening goes to 150×180.
- AERB Type-Approval and AERB License — the X-ray emitter is a regulated radiation source; only AERB-Type-Approved equipment can be imported and only AERB-Licensed operators can run it. The licence carries periodic surveillance, dose-rate verification and operator-medical requirements.
- Conveyor entry and exit — bag flow is staged so the conveyor never backs up onto the scanner. Off-load table or roller after the exit, with re-screening lane if the operator flags.
- Throughput vs accuracy trade-off — at high lobby footfall, the operator is forced to choose between letting bags through unread or letting the queue build. The design throughput should be 60% of nameplate capacity, not 100%.
/ Integration logic
How it talks to the rest.
- Visitor-management — when a flagged bag is passed, the visitor's credential is held in 'pending review' state until a supervisor signs off.
- CCTV — every scanner event (bag entered, alarm, override) is linked to the surrounding CCTV cluster for synchronised replay.
- Central monitoring — multi-scanner deployments (airports, large malls) feed a central supervisor console with TIP-analytics and operator-performance dashboards.
- Access control — the bag-screening lane is part of the secure perimeter; the access-control system reflects the screened-vs-unscreened state for personnel and bags.
/ Failure scenarios
What goes wrong, in practice.
- Operator vigilance decay on hour seven — detection rate drops below the TIP-baseline; mitigated by mandatory shift rotation and TIP-alarm escalation on missed insertions.
- AERB licence lapse — surveillance dose-rate measurement not refreshed annually, licence falls out of validity, scanner remains on-line illegally. Mitigated by calendar entry on the AMC pack and a six-month early-warning to the licensee.
- Shielding compromise — lead curtain damaged by repeated heavy-bag impact, dose rate above AERB threshold at the entry/exit. Mitigated by quarterly dose-rate survey and prompt curtain replacement.
- Conveyor jam under heavy bag — bag stops mid-scan, image incomplete, operator passes by default. Mitigated by conveyor-jam detection, automatic re-scan workflow, and supervisor alert.
- TIP-rate set too low — false-positive rate reduced but operator vigilance not maintained. Mitigated by quarterly TIP-rate audit and adjustment.
/ Maintenance expectations
What the AMC actually delivers.
- Daily operator hand-over check with calibrated test phantom; image quality logged.
- Weekly conveyor inspection and motor lubrication; lead-curtain integrity check.
- Quarterly AERB-required dose-rate survey at the four-corners and the operator console.
- Annual full-system PM by manufacturer-trained engineer including X-ray-tube life check.
- Calendar entry on AERB licence renewal at 30, 60 and 90 days before expiry.
/ Where we deploy this
Active across 4 sectors.
X-Ray Baggage Scanners is rarely a standalone brief — it sits inside a wider sector practice with its own codes, expectations and operating rhythm.
/ Sister services
The rest of elv.
A serious brief usually crosses two or three of these. Read across the discipline — we deliver them as one contract.
- 01
Professional Audio & PA Systems
Intelligible, every seat in the house.
Public address, voice-evacuation and concert-grade audio for auditoriums, places of worship, stadia, transit hubs and event venues.0 - 02
CCTV & Surveillance
Coverage. Storage. Evidence.
IP video surveillance — Hikvision, Dahua, Axis, Bosch — designed to coverage, recording-bandwidth and retention specifications, with VMS and AI-analytics overlays.1 - 03
Access Control
Right person. Right door. Right time.
Card, biometric, mobile-credential and visitor-management — Honeywell, HID, Matrix and Suprema — integrated with CCTV, intrusion and HR systems.2 - 04
Fire Alarm System
Detection that pinpoints. Response that is coordinated.
Addressable fire detection and alarm — Honeywell, Bosch, Notifier and Siemens panels — integrated with PA, BMS, access control and emergency lighting per NBC, IS 2189 and NFPA 72.3 - 05
Fire Hydrant System
High-volume water, precisely where it's needed.
Wet- and dry-riser hydrant systems, jockey-and-main pump rooms, yard hydrants and four-way fire-brigade inlets — designed to NBC, IS 13039 and NFPA 14.4 - 07
Under Vehicle Surveillance (UVSS)
Full-chassis scan, the moment a vehicle arrives.
Embedded high-resolution UVSS with ANPR and driver-occupant cameras — a critical first line of defence at every vehicle entry point.5 - 08
Door-Frame Metal Detectors
Quick, unobtrusive, accurate.
Multi-zone DFMDs with adjustable sensitivity, pinpoint LED indicators and networked logging — for hotels, courts, places of worship, malls and government buildings.6 - 09
Boom Barriers & Motorised Gates
Controlled flow, every gate.
Boom barriers, sliding and swing gates, road blockers, bollards and turnstiles — integrated with ANPR, RFID and access control.7 - 10
Nurse Calling System
Patient request to nurse response. Documented.
IP-based nurse call systems with bedside, bathroom, code-blue and staff-presence stations, integrated with mobile and PA.8
/ Frequently asked
X-Ray Baggage Scanners — what buyers ask first.
What size tunnel do we need?
Choose a 60×40 cm tunnel for handbag screening, 100×80 for full carry-on suitcases and 150×180 for palletised cargo — sized to actual flow and item profile. 60×40 cm handles handbags and laptop bags — sufficient for hotel and corporate lobbies. 100×80 handles full carry-on suitcases — courts, government and airports. 150×180 handles palletised cargo. We size to the actual flow and item profile.
Where are baggage scanners actually mandated?
Government secretariats, courts, certain hospitality at high-threat profile, malls of certain size in some states, regulated sites. Most commercial buildings do not need baggage scanning. We recommend it where the threat assessment justifies it; we will not specify it where the case is purely cosmetic.
Single-view, dual-view or CT?
Single-view machines show one image at one angle — adequate for most low-throughput screening. Dual-view (orthogonal) machines show two angles simultaneously — much harder to defeat by orientation, the right answer for serious screening. CT-grade scanners (Smiths Detection HI-SCAN 6040 CTiX) reconstruct 3D images and are the standard for aviation; rarely justified for commercial buildings.
Smiths Detection vs Rapiscan vs Nuctech?
Smiths Detection is our default for premium hospitality and government — strongest service network in India and most refined operator software. Rapiscan is excellent at value pricing for institutional deployments. Nuctech is competitive on price but service support varies. Choice follows the project's service-level expectation.
How is operator fatigue managed in a 24/7 screening operation?
Through documented rotation (operators screen for max 30 minutes then break), TIP (Threat Image Projection) software that injects synthetic threats to keep operators alert, and supervisor review on flagged scans. The screening is only as good as the operator behind it; we engineer the operational protocol alongside the equipment.
What's the lifecycle of an X-ray scanner deployment?
12–15 years on the X-ray generator, with routine bulb replacement at 7–10 years. Conveyor and operator workstation refresh at 10 years. Annual radiation-safety audit by a qualified consultant is mandatory; we coordinate that as part of AMC.
