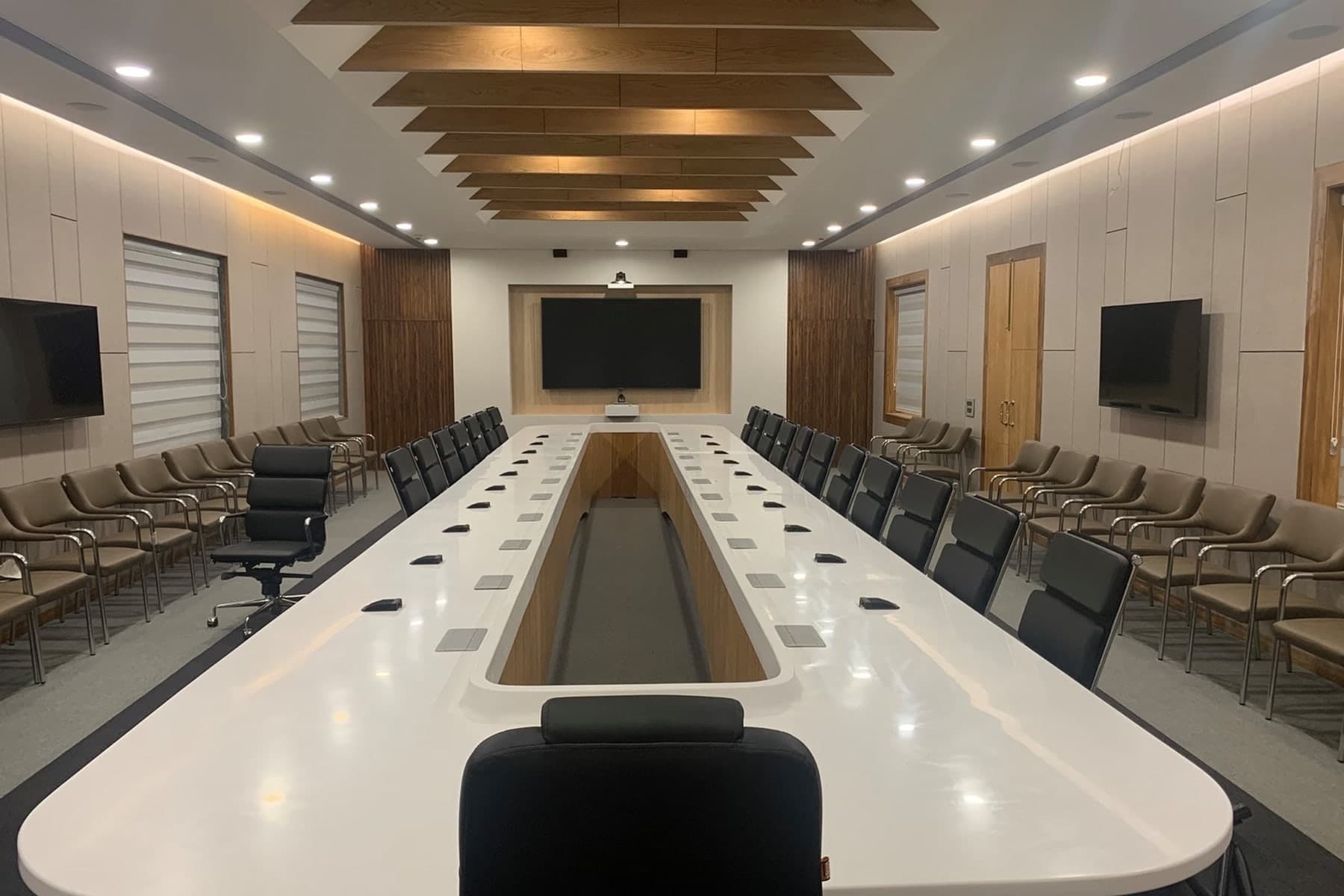

Assam State Guest House, Koinadhara.
The shape of the deployment.
Structured engineering tagging — deployment archetype, infrastructure complexity, operational class and the named protocols the integration runs on.
- Infrastructure complexity
- Single Block
- Operational class
- Government Chamber
- Deployment archetypes
- high security elv stackvvip protocol residenceperimeter screening checkpointaddressable fire life safety
- Protocols referenced
- ONVIF Profile S (CCTV / ANPR)RFID 433 MHz / UHF long-range (15 m)ANPR plate-read + driver-photo correlationCat6 structured cabling (TIA-568)Online double-conversion UPS topology (per-load)Inductive-loop trigger (UVSS / boom-barrier)Addressable fire-alarm loop (IS-2189)AERB / BARC X-ray baggage-scanner radiation norms
What we were asked to deliver.
Koinadhara is the state protocol residence of the Government of Assam at Guwahati — a hilltop facility hosting state guests, official delegations and visiting dignitaries. TechnoGuru delivered the high-security ELV, screening, life-safety and supporting AV / communication scope for the main gate stack and the hilltop access road during the Covid period in 2021. Two under-vehicle scanning systems with ANPR, a dual-energy X-ray baggage scanner, two boom barriers, a flap-gate turnstile, a 6-camera ANPR pole array, EPABX-and-LAN backbone, an AV conference room, an addressable fire-hydrant and alarm chain and a per-system online-UPS stack engineered for protocol-grade uptime. Three-year comprehensive AMC delivered post-handover; period closed in December 2025.
Signal & system architecture.
6 disciplines, one contract.
Pro audio
Video wall
Signal distribution
Power continuity
Network backbone
Surveillance
- ↳Designing the main-gate stack for an actual hilltop protocol residence — UVSS, ANPR, X-ray and boom barrier choreographed against a single arriving-vehicle gesture rather than a flat-ground enterprise checkpoint. The UVSS inductive-loop triggers the camera underside scan, the ANPR pole-array reads the plate and the driver photo before the boom barrier opens, and the X-ray screening lane runs in parallel for baggage — all on a single operator-room console without a sequential queue building at the gate.
- ↳Holding the dual-energy X-ray scanner steady on a hilltop grid where voltage excursion is the operational norm — solved with a dedicated 8 kVA mainline voltage stabilizer ahead of a 6 kVA online UPS, sized to deliver one hour of backup at the scanner's measured load envelope. Without that pairing, the scanner re-boots during a routine sag and the screening line stops.
- ↳Engineering the ANPR-pole foundations against hilltop wind exposure — the 4-pole array carries the ANPR cameras, the driver-photo cameras and the long-range RFID readers, all of which fail in different ways under pole tilt. Foundation depth and rebar profile were specified per pole against the local wind-load profile, not a flat-ground catalogue baseline.
- ↳Threading 450 m of 1-inch HDPE through the hilltop approach road for the camera trunks without breaking the road surface for routine cable pulls — HDPE under-conduit was laid during the road build-out window with draw pits at every camera-pole base, so any post-handover cable refresh runs without civil work.
- ·Arriving-vehicle screening runs as one choreographed gesture at the main gate — UVSS underside, ANPR plate + driver photo, boom barrier and X-ray baggage in parallel, all on a single operator-room console without sequential queueing.
- ·500 RFID-enrolled protocol-fleet vehicles open the boom barrier automatically on approach within the 15 m reader range — no operator action for the recurring fleet, full screening sequence preserved for every non-enrolled vehicle.
- ·Per-system online UPS holdover means a fault at any one load (X-ray, UVSS, turnstile, boom) does not cascade across the screening stack — the brief was uptime under multi-mode failure, and the architecture enforces it at the power layer, not at software level.
- ·Three-year comprehensive AMC delivered post-handover from 2021 through to December 2025 — preventive cadence, spare-pack inventory and operator re-training sessions delivered against a published quarterly schedule.
What the floor told us when work started.
A hilltop grid is not a flat-ground grid.
Hilltop sites carry voltage excursion and earthing-quality variability that flatten-ground enterprise checkpoints rarely confront. The X-ray scanner sits behind an 8 kVA mainline voltage stabilizer and a 6 kVA online UPS, not directly on the building bus — and the chemical-earthing pit count was specified against the screening and surveillance plant, not the building's earthing schedule.
Per-load UPS is uptime engineering, not power-quality engineering.
Every load class — boom, turnstile, UVSS, X-ray, bollard — has its own dedicated online double-conversion UPS. The brief was uptime under cascading failure, so a trip on the X-ray feed cannot pull the boom offline and a turnstile fault cannot reach the UVSS. A single mainline bus would have been cheaper and operationally worse.
RFID auto-recognition is a protocol-office decision, not a security decision.
The 500-tag long-range RFID system opens the boom on approach for pre-enrolled protocol-fleet vehicles within a 15 m reader range — without that, the protocol fleet queues through the full UVSS-plus-ANPR sequence every time. The enrolment list is held against the protocol-office vehicle register, not against a generic facility access-control database, and is reviewed when the vehicle register changes.
HDPE under-conduit on the hilltop road avoided years of civil work.
450 m of 1-inch HDPE under-conduit was laid during the original road build-out window with draw pits at every camera-pole base. Without that, every post-handover cable refresh would be a road-cutting exercise — and on a working protocol-residence approach road, road-cutting windows are vanishingly rare.
What the engagement had to work around.
- POWER
- Constraint —Hilltop grid carries voltage excursion that destabilises a dual-energy X-ray scanner — the scanner cannot sit directly on the building bus.
- Design response —Dedicated 8 kVA mainline voltage stabilizer ahead of a 6 kVA online double-conversion UPS, sized to one hour of backup at the scanner's measured load envelope.
- CASCADING FAILURE
- Constraint —A trip on any one load (X-ray, UVSS, turnstile, boom) cannot be allowed to pull adjacent screening loads offline.
- Design response —Per-system online UPS — separate UPS per load class with no shared mainline bus. The architecture enforces fault containment at the power layer rather than at the application layer.
- HILLTOP WIND EXPOSURE
- Constraint —ANPR-pole tilt corrupts plate-read accuracy and IR-illuminator coverage; pole foundations on the hilltop face higher wind load than a flat-ground baseline.
- Design response —Foundation depth and rebar profile specified per pole against the local wind-load profile, not the catalogue baseline. Each of the 4 ANPR / driver-photo poles is engineered as a separate foundation calculation.
- CIVIL-WORK AVOIDANCE
- Constraint —Hilltop approach road carries protocol-fleet traffic — re-cutting the road for post-handover cable refresh would interrupt residence operations for days.
- Design response —450 m of 1-inch HDPE under-conduit laid during the original road build-out window with draw pits at every camera-pole base. Cable refresh is a pull through HDPE, not a civil exercise.
- COVID-PERIOD DELIVERY
- Constraint —Site material movement, commissioning attendance and operator-training sessions had to fit inside state-imposed movement restrictions through 2021.
- Design response —Every milestone witnessed and signed against a date-stamped commissioning log; phased commissioning by load class so the gate stack went live ahead of the X-ray scanner; operator training delivered in small cohorts to satisfy distancing rules.
What needed careful handover.
RFID enrolment register handed across to the protocol office.
500 vehicle tags were enrolled against the protocol-office vehicle register — not against a generic access-control list — with a published procedure for tag activation, deactivation and re-issue. The protocol office owns the enrolment list; TechnoGuru owns the reader and barrier plant.
EFFORT — One enrolment session + published procedure document
X-ray scanner radiation-safety witness pass.
Operator-shield positioning, tunnel-leakage measurement and the imaging-room access-control discipline were witnessed and signed off against the published AERB / BARC norms before the scanner went into screening use. The operator-training session covered emergency-stop and image-recall procedure.
EFFORT — One witnessed safety pass + operator training cohort
Per-load UPS holdover proof on the screening stack.
Each UPS (2 kVA boom × 2, 2 kVA turnstile × 8, 3 kVA UVSS × 2, 6 kVA X-ray × 2, 10 kVA bollard × 2) was held under one-hour load with mains isolated, witnessed against the screening operator. The X-ray UPS proof ran with the scanner under live screening load, not a synthetic test load.
EFFORT — One full-day load-proof session per UPS bank
ANPR plate-read accuracy across day/night/rain profiles.
Plate-read accuracy was measured against a 100-vehicle witness set across noon, dusk, night-IR and monsoon-rain conditions on the hilltop approach. Camera lens (5–55 mm) and electronic-iris settings were locked against the witnessed profile, not the manufacturer's default.
EFFORT — Two evening + one monsoon-window calibration session
Boom-barrier safety interlock against the photo-cell pairs.
Vehicle-safety photo-cell pairs on both sides of each boom were witnessed for active interlock — boom descent halts on any beam break, full retract on any beam-break trip, and the manual override is independently witnessed. Safety witness was paired against the protocol-fleet operating profile, not a generic commercial gate test.
Seams that required cross-trade engineering.
SEAM 01
Civil road build-out × HDPE under-conduit × camera pole foundations
450 m of 1-inch HDPE was laid during the original road build-out window with draw pits at every camera-pole base — the civil contractor's programme had to accommodate the ELV pull-points before the road surface was sealed, and the ANPR-pole foundations had to be cast against the pole-tilt brief, not the civil shop drawing.
SEAM 02
Protocol office × RFID enrolment register × access-control list
The 500-tag RFID enrolment register sits against the protocol-office vehicle register, not against a generic facility access-control database. Issue, revocation and re-issue procedure was published as part of the handover so the protocol office owns the register and TechnoGuru owns the reader plant — without that seam, list ownership becomes ambiguous and stale.
SEAM 03
X-ray scanner × radiation-safety witness × operator-training cohort
X-ray operator-shield positioning, tunnel-leakage measurement and access-control discipline had to be witnessed against AERB / BARC norms and signed off before the scanner went into screening use — a separate witness pass from the general ELV commissioning, with its own operator-training cohort.
SEAM 04
Per-load UPS bank × earthing-pit count × stabilizer placement
Per-system UPS sizing forced an earthing-pit and stabilizer-placement coordination across the screening plant — 4 dedicated chemical-earthing pits and the 8 kVA mainline stabilizer ahead of the X-ray UPS, all sequenced against the building's existing earthing schedule without compromising fault-clearance impedance.
What the design refuses to let take the whole system down.
X-ray scanner reboot during a grid voltage excursion.
HIGHIsolated by —Dedicated 8 kVA mainline voltage stabilizer ahead of the 6 kVA online UPS with one-hour holdover. The scanner sees a clean sine wave through the entire mains-recovery window; the screening line stays available.
UVSS underside-camera water ingress through enclosure seal.
MEDIUMIsolated by —IP67 underground enclosures with annual seal-replacement on the AMC calendar; the chequered-stainless top plate sheds water under load. Camera-array swap is a like-for-like service inside the existing enclosure, not a structural exercise.
ANPR plate-read accuracy collapses in a heavy-monsoon event.
MEDIUMIsolated by —Calibration covered noon, dusk, night-IR and monsoon-rain profiles at commissioning; 5–55 mm motorised lens and electronic-iris settings were locked against the witnessed profile. The driver-photo correlation module provides a manual override path when the auto plate-read fails.
RFID tag cloning by a sophisticated adversary.
MEDIUMIsolated by —Auto-recognition opens the boom but does not bypass the UVSS underside-scan or the ANPR plate read — both run irrespective of the RFID event. A cloned tag still triggers the full UVSS / ANPR sequence and the operator sees the underside image and plate read before the boom is interlocked open. The RFID auto-recognition is a convenience for the recurring fleet, not a security primitive.
Boom-barrier photo-cell pair blinded by insect ingress.
MEDIUMIsolated by —Annual clean-and-realign cycle on the AMC schedule; safety interlock fails closed if the beam pair cannot be re-acquired (boom does not descend until interlock is restored). The protocol-office override is a witnessed manual procedure, not a software bypass.
Single-UPS failure pulls a whole screening lane offline.
MEDIUMIsolated by —Per-load UPS architecture means each load class (UVSS, X-ray, boom, turnstile, bollard) is on its own dedicated UPS — a single-UPS event affects only its dedicated load and the rest of the screening stack stays live. The AMC inventory holds a named replacement pack against each load class.
What the team will live with.
- X-ray scanner generator + detector arrayThe X-ray generator and dual-energy detector array carry a 7–10 year service life under daily protocol-screening load — generator output drift and detector-pixel dead-out are the leading service-life signals. Replacement is a like-for-like service rather than a full scanner refresh.
- UVSS camera array under hilltop weatherUnderside-imaging cameras inside the IP67 enclosures carry a 5–7 year service life under hilltop weather — water-ingress through enclosure seals and condensation-fog on the lens face are the leading failure modes. The chequered-stainless top plate carries a longer life envelope than the camera array itself.
- RFID long-range reader + enrolled-tag inventoryLong-range readers carry a 7–9 year service envelope; the 500-tag inventory is consumable — protocol-fleet vehicles change, tags are lost, replacement is on an issue-and-revoke cadence held by the protocol office. The tag-issue register is on the AMC review calendar, not the building's BMS.
- Online-UPS battery banks (per load class)Sealed maintenance-free battery banks on a 3-year refresh cycle for the one-hour holdover guarantee across the screening stack. The AMC inventory holds named replacement packs against each load class — X-ray, UVSS, boom, turnstile, bollard — not against a generic spares pool.
- Boom-barrier motor + photo-cell pairsBoom barriers carry a 5–7 year service envelope on the 24 V DC motor under intensive-use duty; photo-cell pairs are vulnerable to insect ingress and need an annual clean-and-realign cycle. The AMC schedule holds both items, not just the motor.
- ANPR pole foundations under continued hilltop windPole foundations carry a 15+ year envelope but require an inspection cadence after every monsoon and after any significant wind event — corrosion at the base-plate / grout interface is the leading silent failure mode. Inspection is on the AMC calendar with a published before/after photograph register.
Where the design holds capacity for growth.
+ Additional ANPR or driver-photo camera at a secondary gate.
Cat6 head-end has spare PoE ports on the 2× 8-port switches; one additional ANPR pole with its own foundation, HDPE under-conduit drop and an enrolled-tag policy extension is the minimum incremental scope.
+ Body-worn camera or handheld metal-detector feed into the operator console.
The Cat6 backbone and the desktop-operator workstation have ingestion headroom for a body-worn camera fleet; UVSS / ANPR / CCTV operator workflow already handles a multi-source console, so the addition is configuration plus operator-training rather than re-cabling.
+ Visitor pre-registration + RFID-tag pre-issue from the protocol office.
RFID-tag pre-issue against a published visitor-profile manifest cuts the auto-recognition cohort beyond the 500-vehicle protocol-fleet baseline; the 500-tag inventory has been operated below capacity, so the reader-and-tag plant supports it without hardware change.
+ Fire-alarm cause-and-effect integration into the operator console.
Fire-alarm panel is currently independent of the screening console; a Cat6 tap into the operator workstation plus a documented cause-and-effect matrix (e.g. fire trip homes boom-barrier to closed, flap-gate to free-pedestrian, X-ray scanner safe-state) is the minimum scope.
What this engagement taught us, on the record.
- 01
Per-load UPS is the right architecture when uptime is the brief, not power-quality optimisation.
Every high-security ELV engagement since this handover treats per-load UPS as the default — separate UPS per load class with no shared mainline bus, so a fault on one load cannot cascade across the screening stack.
- 02
RFID auto-recognition is convenience, not security — the UVSS and ANPR sequence runs regardless.
Every screening-deployment brief frames RFID auto-recognition as a protocol-fleet convenience that runs in parallel with the full UVSS / ANPR sequence; a tag clone or RFID-reader failure cannot bypass the underside scan or the plate-read.
- 03
HDPE under-conduit during civil build-out is one-day-of-civil-work that saves a decade of road-cutting.
Every protocol-residence and government-perimeter engagement schedules HDPE under-conduit during the civil build-out window — draw pits at every camera-pole base, cable refresh becomes a pull, not a civil exercise.
- 04
Hilltop voltage excursion requires a stabilizer ahead of the UPS for sensitive plant.
Every hilltop / remote-site deployment with sensitive electronic plant (X-ray, fine-pitch LED wall, medical imaging) carries a mainline voltage stabilizer ahead of the UPS — the UPS isolates the inverter side, the stabilizer isolates the input side.
- 05
The RFID enrolment register is owned by the protocol office, not the ELV integrator.
Every facility with an enrolment-driven access primitive (RFID, biometric, ANPR whitelist) carries a published issue-and-revoke procedure handed across to the facility operator at handover — the integrator owns the reader plant, the operator owns the list.
